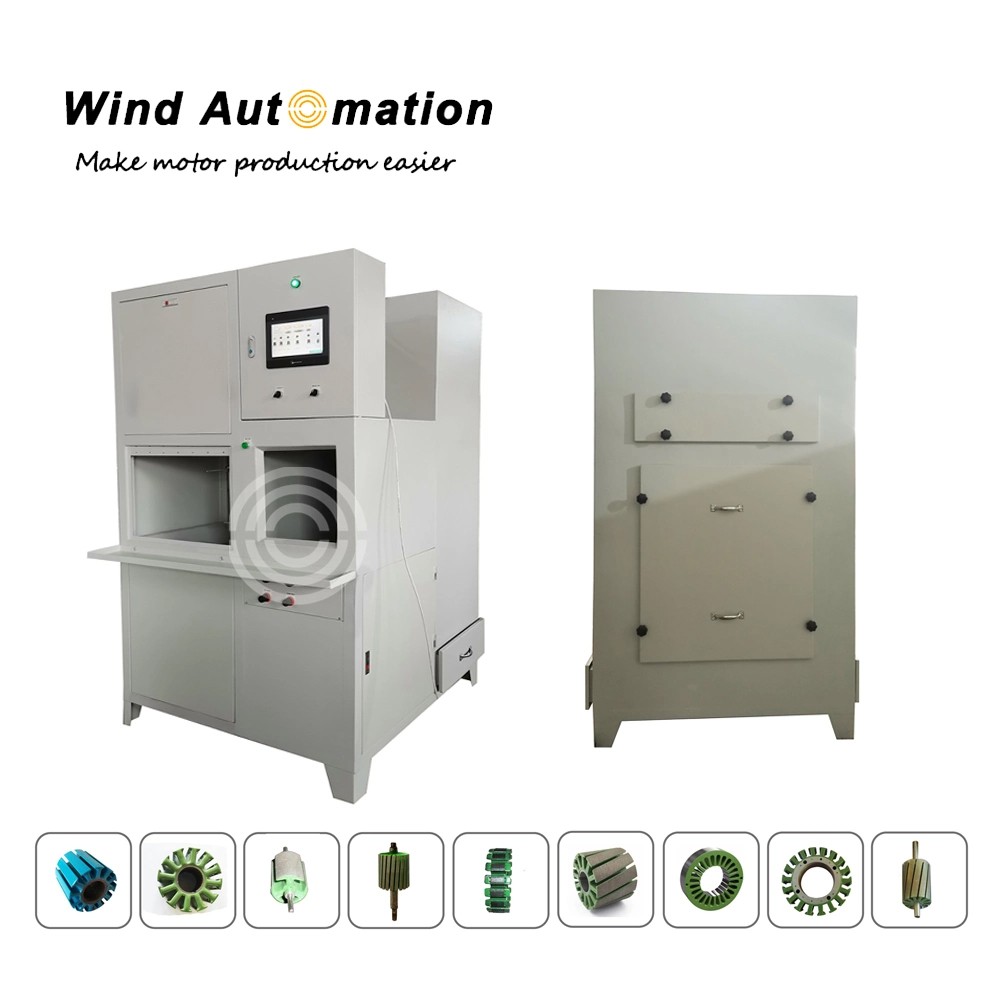

Lab Use Armature Stator Slot Powder Coating Machine
With PLC and touch screen, all the parameters can be displayed and programmed. The rotation function of fixture greatly improves the powder coating effect.
(1)Features
Workpiece should be pre-heated.
Manual loading and unloading
Dipping time adjustable on touch screen
Safety door to keep powder contained
With powder recycling function and fixture rotation function
Stator pre-heating temperature is as per customer's requirement, our recommendation is 220-230 degree.
(2)Specification
| Ambient temperature | -20ºC~40ºC |
| Relative humidity | Less than 80% |
| Air supply | 0.6MPa |
| Power | 3KW |
| Power supply | AC 380V ± 10%, 50Hz / 60Hz |
| Dimensions | 1200(L)X1280(W)X2060(H) mm |
(3) Operation step
Power on machine
Pre-heat stators
Select related stator parameter on touch screen
Load heated stator
Press auto start button
Machine will automatically do powder coating
Unload stator
Remove extra powder by air gun
