Wire-Winder-Coil-Winding-Machine-Shed-Winding-Machine

Basic Info.

Model NO.

WIND-800-VW

Specification

Middle Size

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

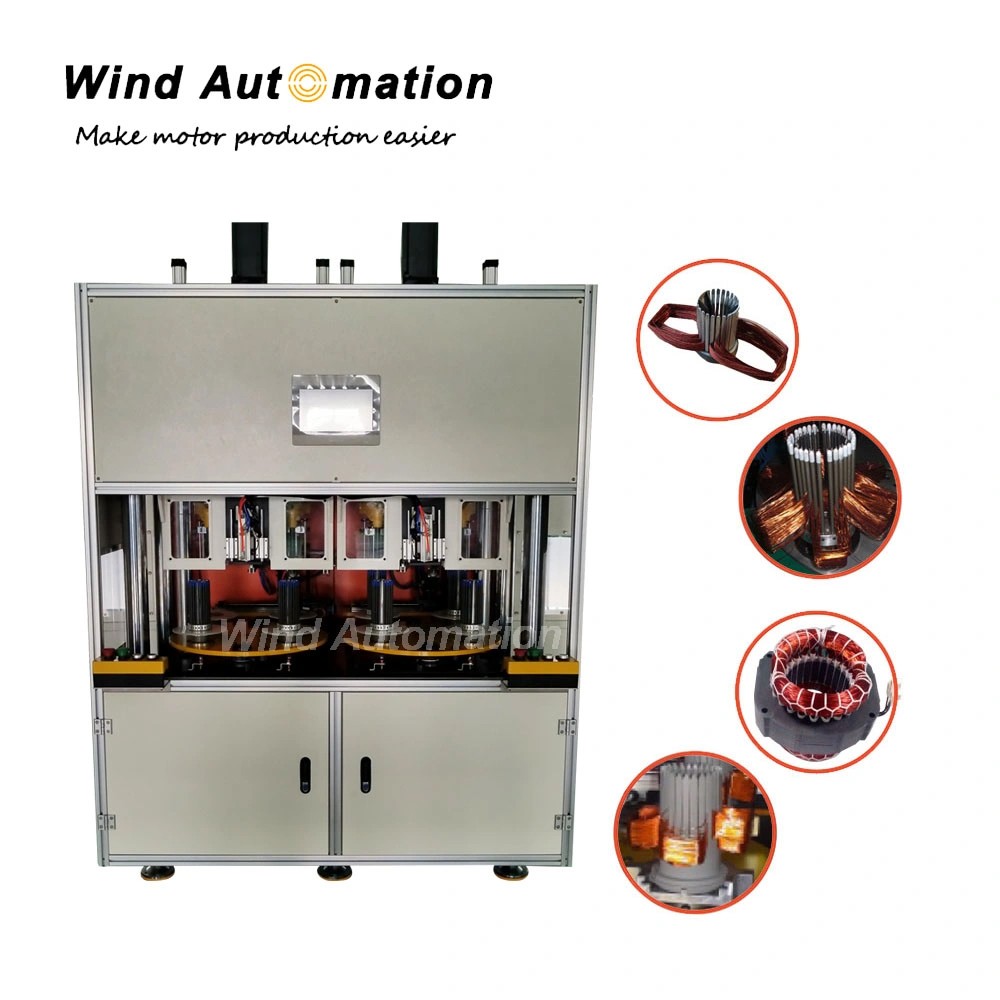

Wire Winder Coil Winding Machine Shed Winding Machine

This machine have eight working stations, every two working stations are in one turntable mechanism, therefore, one for coil winding, the other for coil unloading. So coil winding and coil loading can be done at the same time, therefore greatly improves the working efficiency.


(1) Specification

(2) Feature
4 winding head 8 working station
Manual unloading coils after winding
Rotation and indexing controlled by servo system
No distinct vibration or noise during winding
Automatically stop if wire is run out
All winding parameter programmable on touch screen

(3) Application
This machine is suitable for mass production of 2 poles, 4 poles and 6poles coils winding.
