Product Description

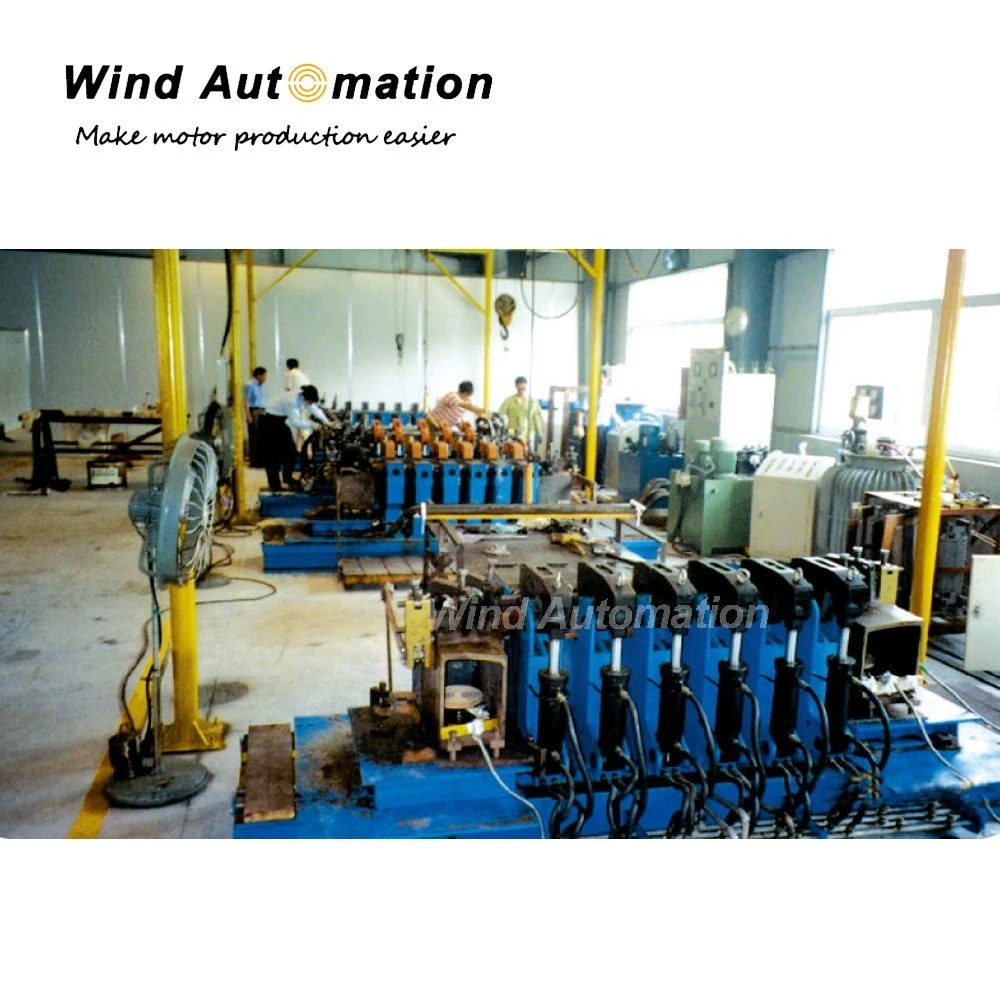

Multi-head Hydraulic Forming Hot Press forr Water Generator Wire Rods

Specification

1.One hydraulic pump station, oil pressure: 1~20MPa, power: 7.5kW

2.(8,12 pcs.) press head rack, 1 horizontal press head with max. pressure 10T, 1 vertical press head with max. pressure 7.3T;

3.Line length (1~2m,1~3m)steplessly adjustable, distance of the heads: 180~230mm;

4.Multi-head press adopting pre-pressure oil loop, 1~1.5MPa adjustable, time adjustable between 5~15minutes, automatically exerting pressure when time is due;

5.One multi-head hydraulic press electric cabinet, with operation modes "automatic" or "inching";

6.General for multi-head hydraulic press, can hold different moulds of double wire rods.


Two pairs of hydro-generator coil bar cushion moulds for upper layer and lower layer each, one pair of mould can press two upper layer coil bars, the other can press two lower layer coil bars.

1.Mould's linear part compress oil cylinder on the multi-head press, the end part compress oil cylinder installed on the mould;

2.Put shim onto the mould for pressing inter-turn curing, has set of inter-turn curing strips;

3.Pressing mould & livering are available upon mould, has set of livering strips;

4.Tolerance of the wire mould: ±0.10mm for line part, ±0.125mm for end part, design & manufacture as the drawings.
