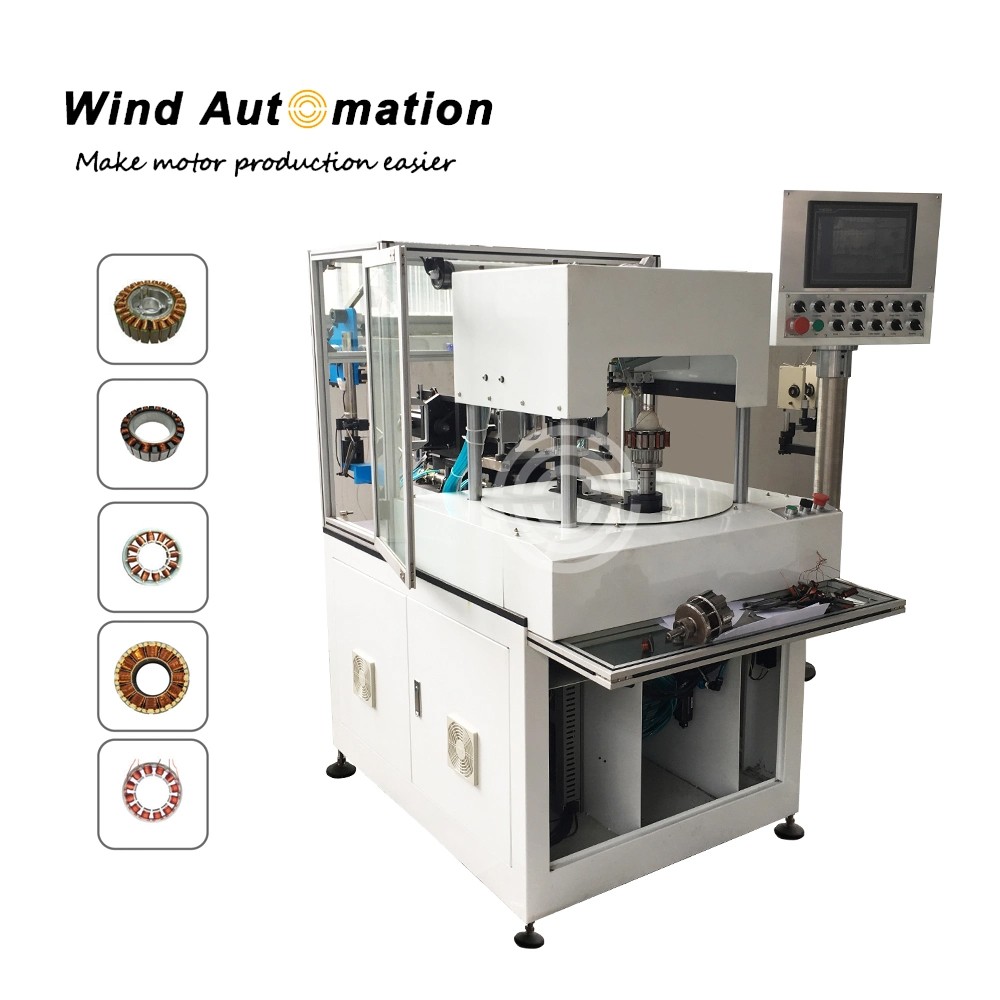

Magnetic Motor Fan Motor Winding Machine with Latest Winding Technology
This motor winding machine is able to work with the product type listed in specification. Different model types can be run simply by changing the program and tooling.
(1) Specification
| Wire diameter | 0.15~1.50mm |
| Rotor O.D | 15~260mm |
| Slot number | Multi poles |
| Turn no | 0~99999 |
| Movement | Stepping / Auto |
| Stack height | 7~60mm |
| RPM | Max 1500RPM |
| Voltage | 220v/50Hz |
| Power | 2.5 KW |
| Air source | 5~7kg/m3 |
| Weight | 600Kg |
| Dimension | 1150X2350X1500mm |
(2) Features
Winding speed up to 1500RPM
Wide wire diameter range
Wide application and strong adaption
Perfect layer winding
Fast retooling
(3) Application

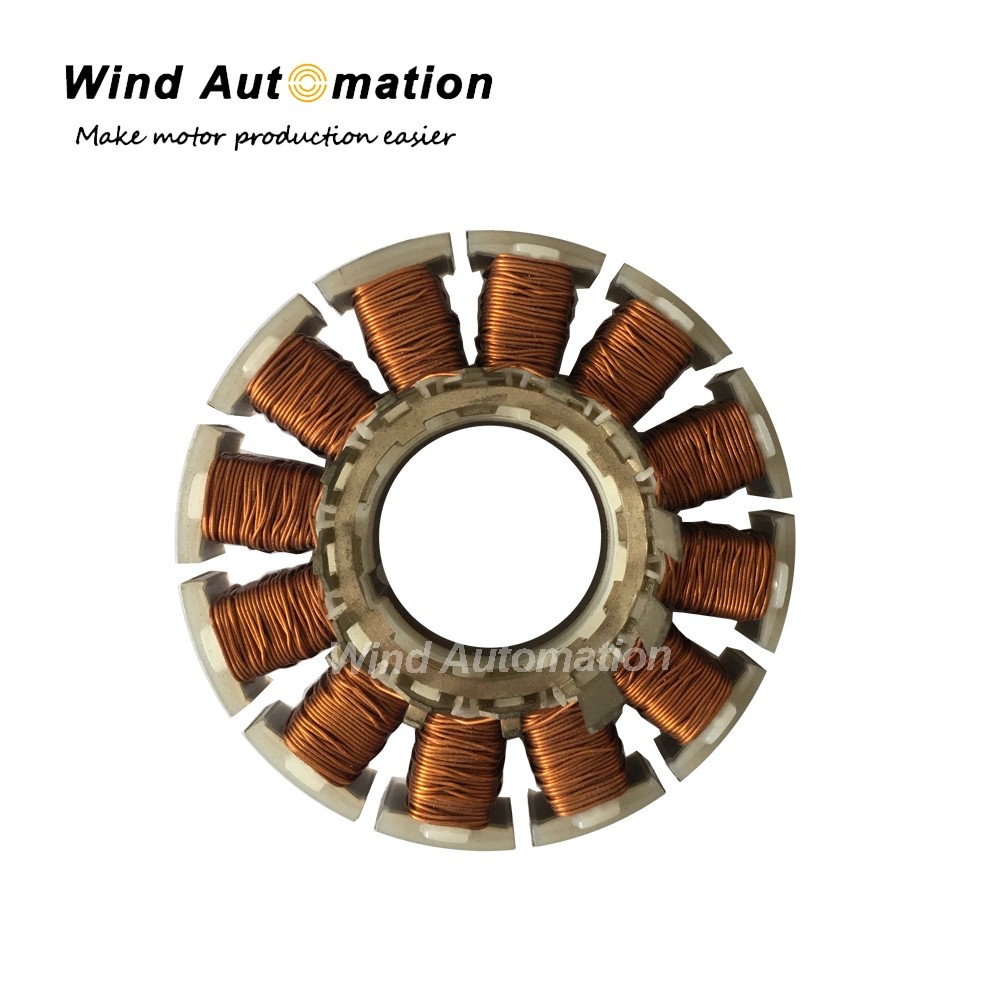

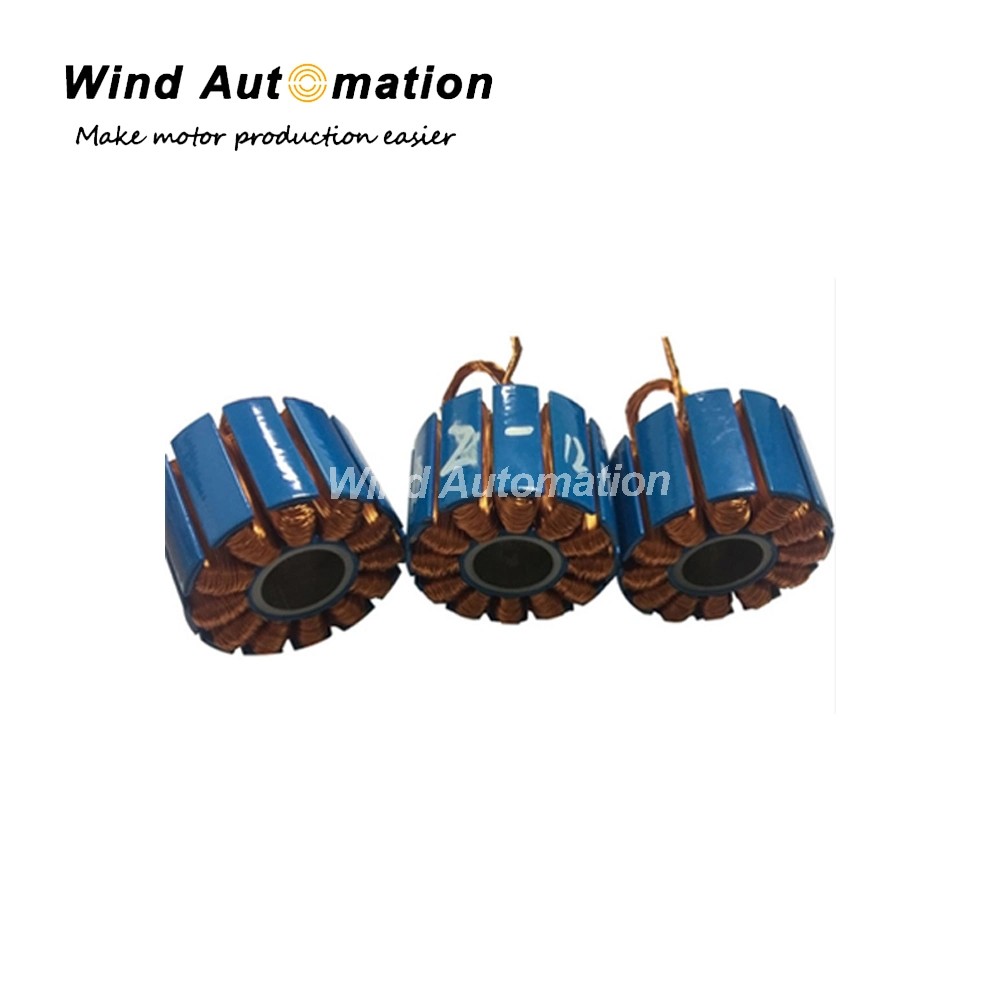

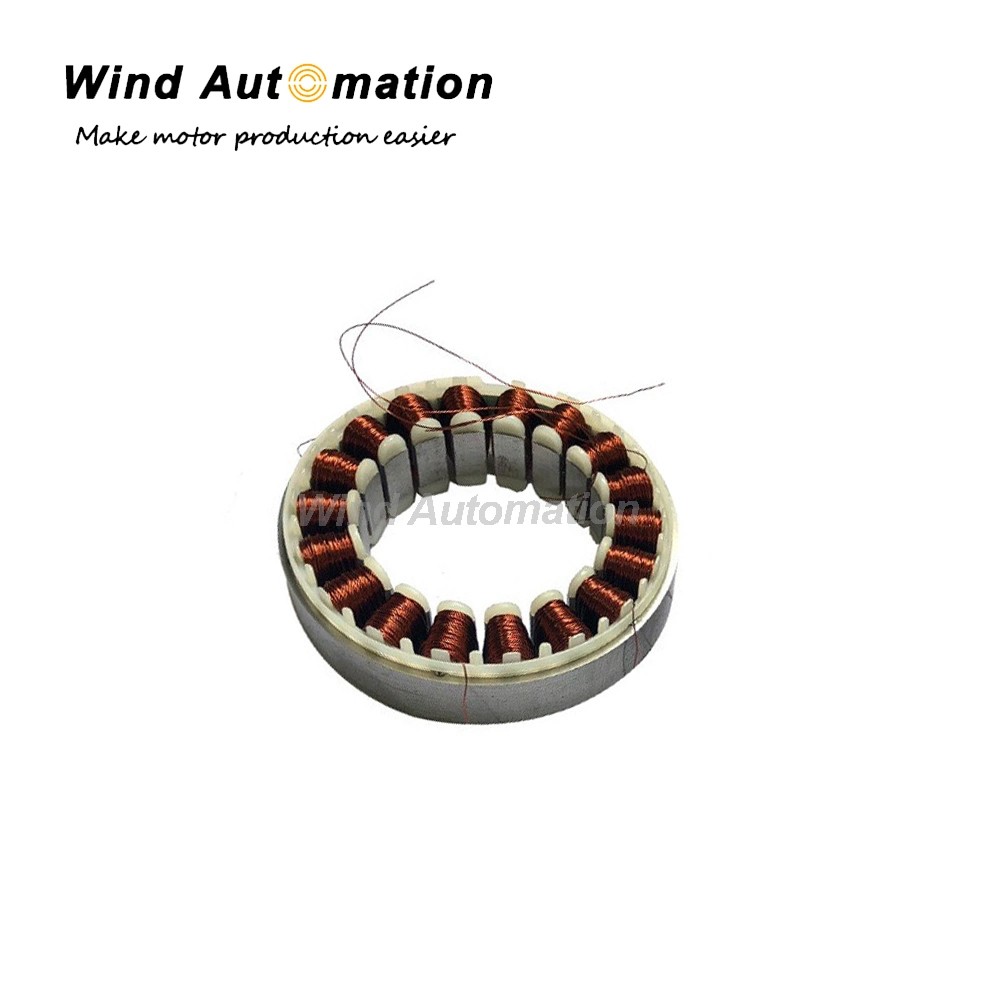

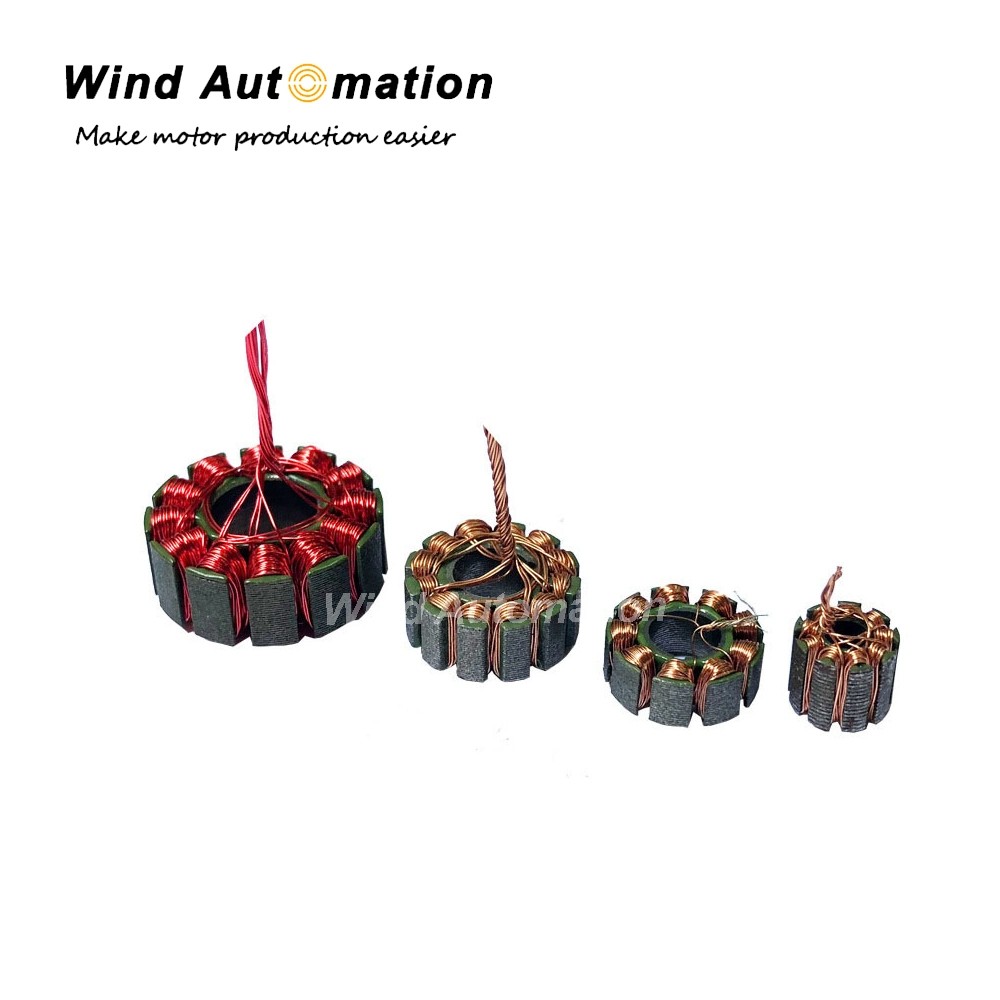

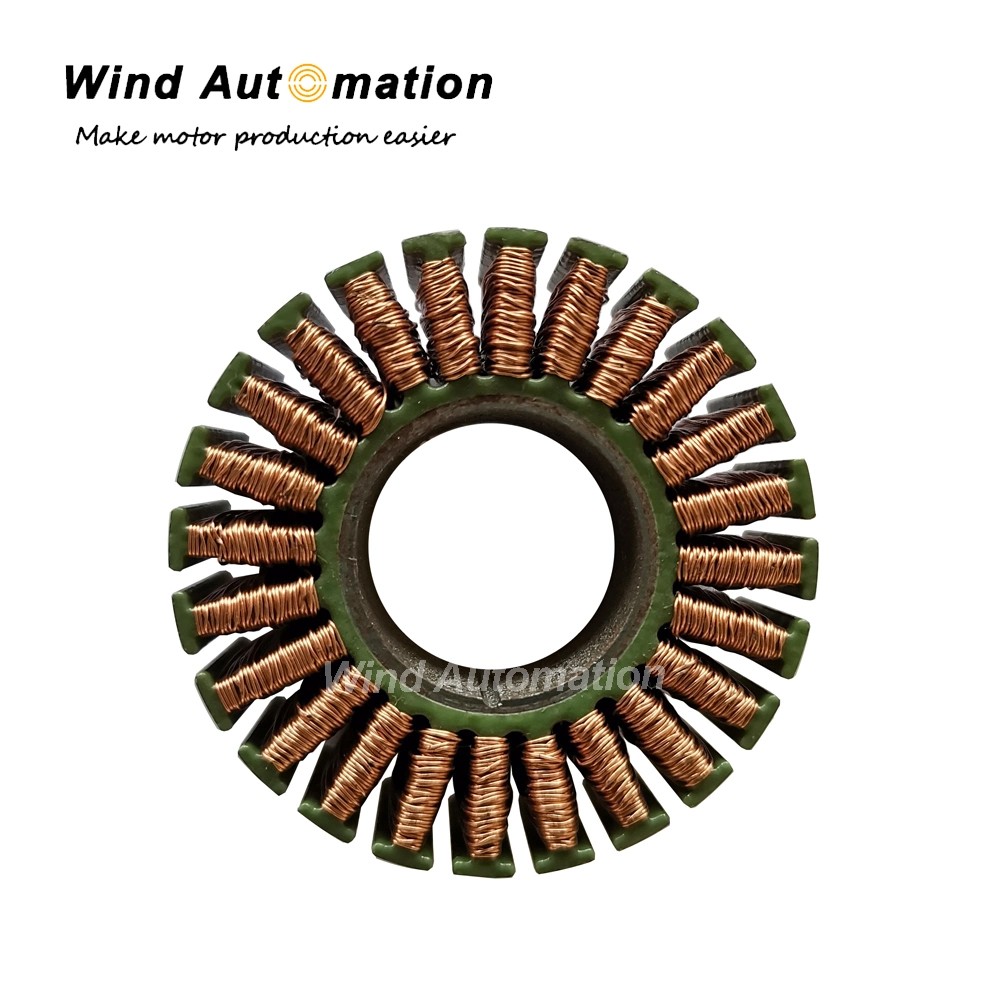

Suitable for magnetic motor, digital generator, washing machine motor, air conditioner motor.
