AC-Electrical-Induction-Motor-Stator-Coil-Inserting-Machine

Basic Info.

Model NO.

WIND-90-CWI

Trademark

Wind Automation

Origin

China

HS Code

8479811000

Production Capacity

100 Sets/Year

Product Description

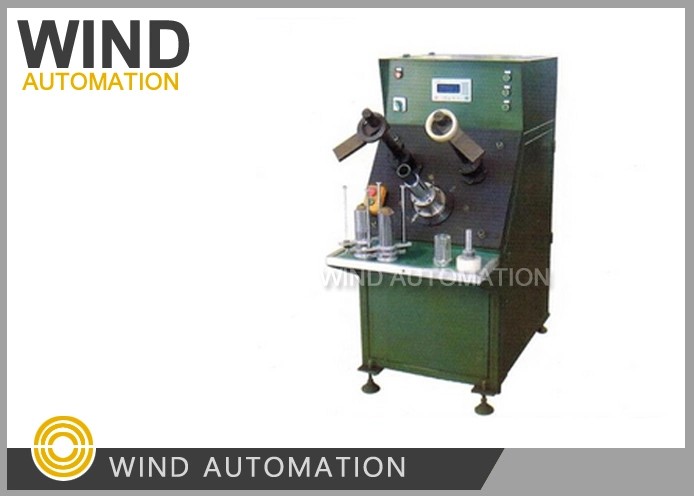

Economic Type Induction Motor Stator Coil Inserting Machine

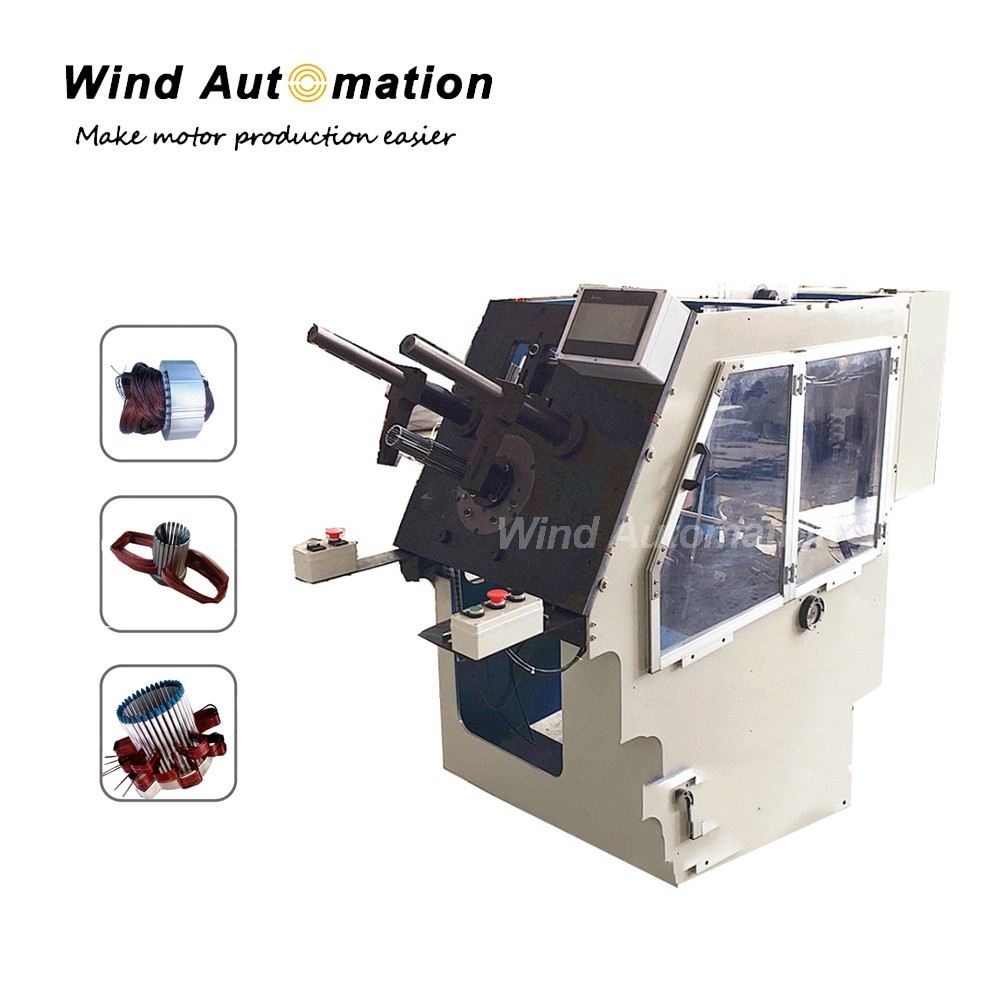

AC Electrical Induction Motor Stator Coil Inserting Machine

(1) Feature
Wide application

Manual loading and unloading
Can be customized accordingly
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
Copper wire and aluminium wire are both applicable
After insertion, no deformation of stator, lamination, or insulation paper
Easy for operation, No skilled operator required


(2) Application
This type of machine is suitable for various types of AC motor, induction motor stators.

(3) Specification

Stack lengthMax 120mm
Stator ID20~100mm
Stator ODMax 160mm
Tooling strokeMax 70mm
Suitable wire materialCopper/Aluminium wire
Slot number8~48slots
Power supply380V 50/60HZ
Weight850KG
Dimension1850x650x1700mm

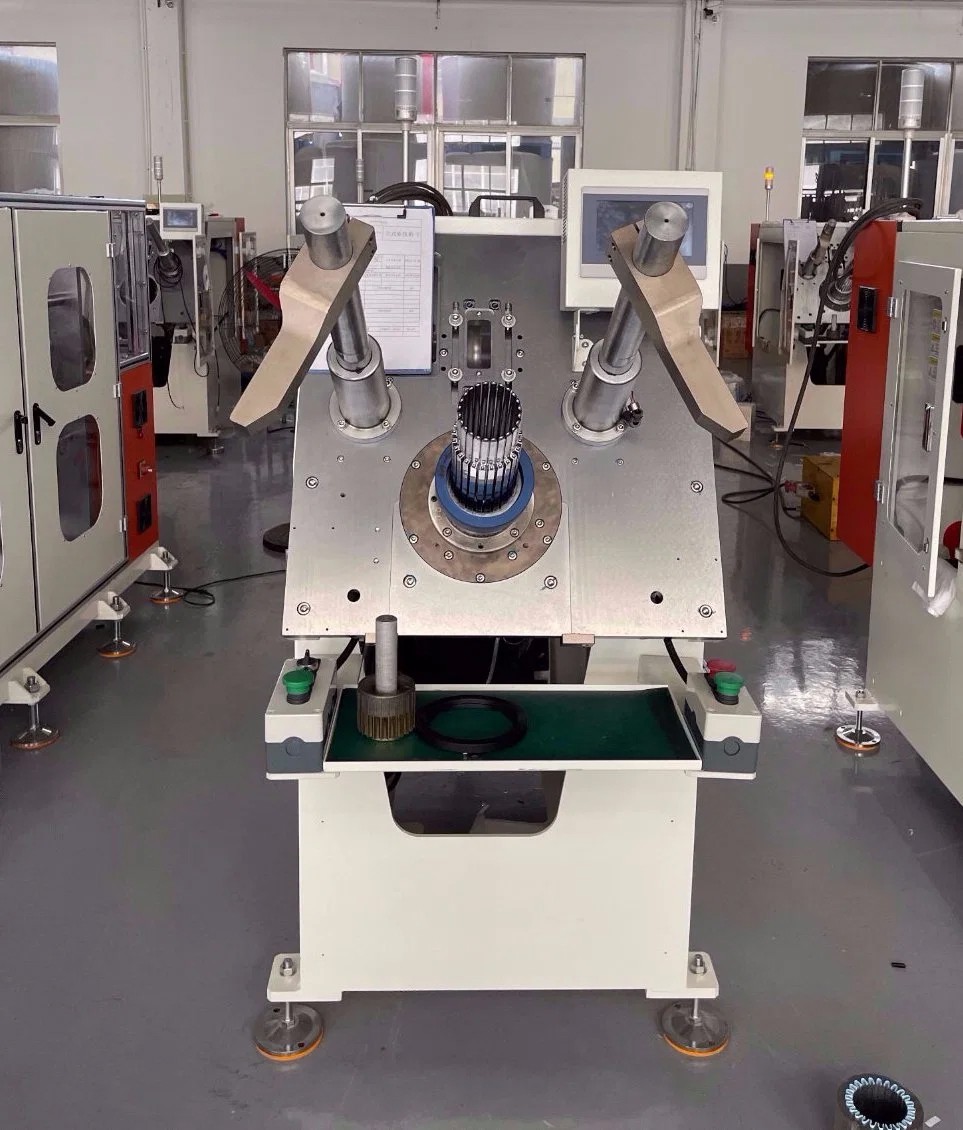

AC Electrical Induction Motor Stator Coil Inserting Machine

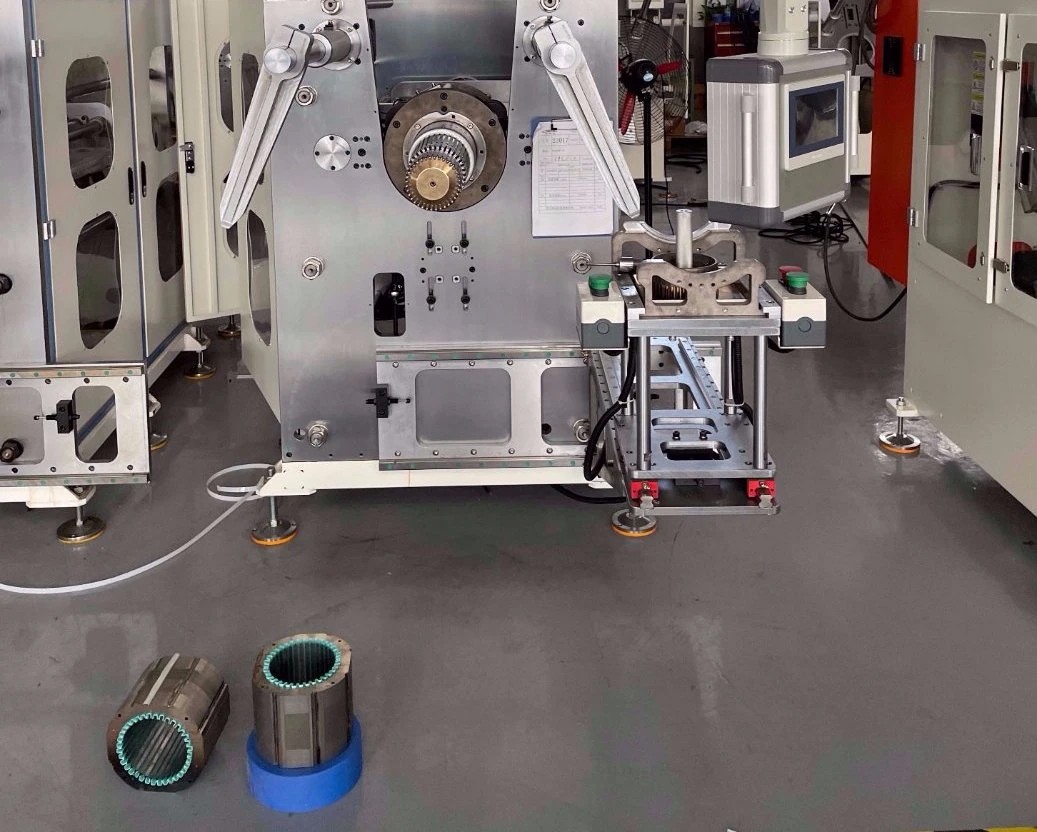

AC Electrical Induction Motor Stator Coil Inserting Machine

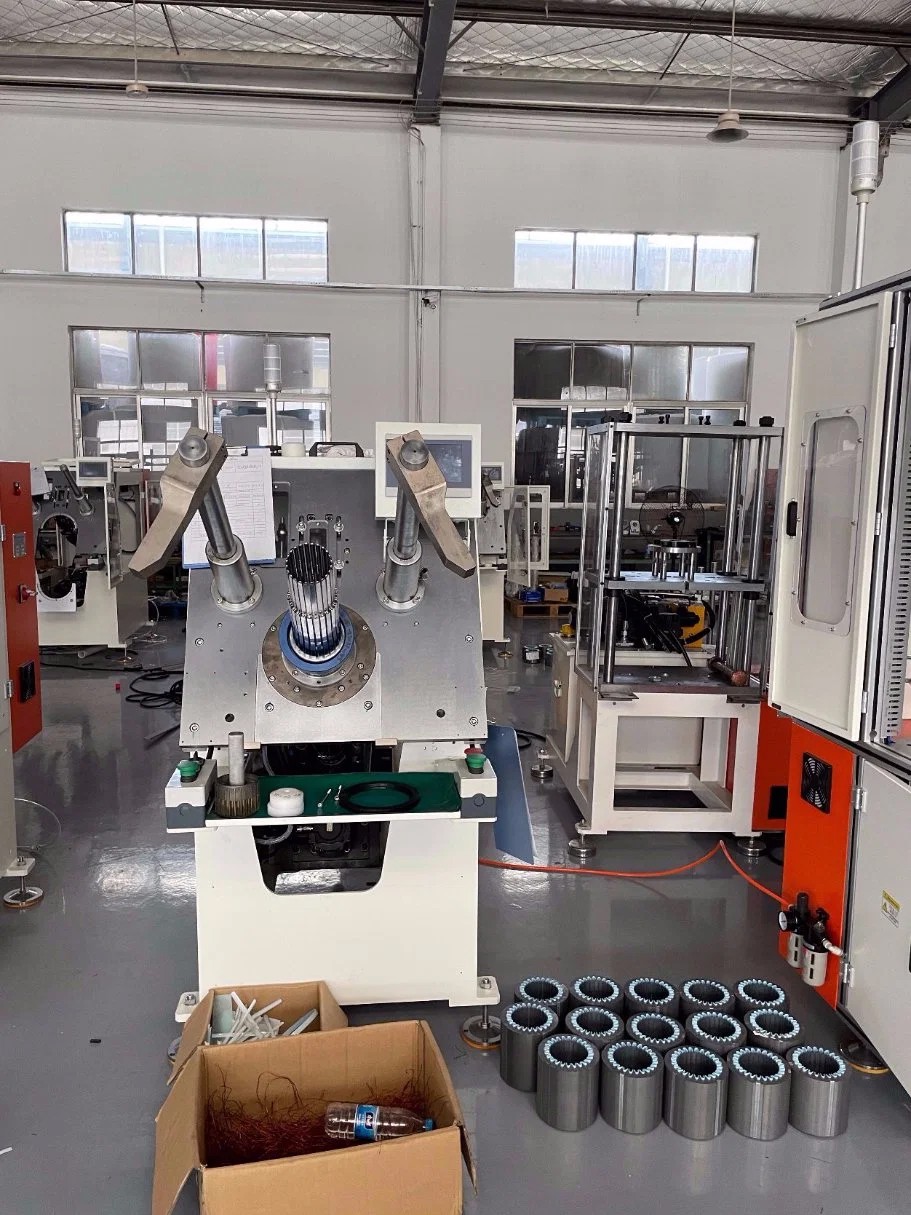

AC Electrical Induction Motor Stator Coil Inserting Machine


AC Electrical Induction Motor Stator Coil Inserting Machine
