Motor-Armature-Shaft-Quench-Machine-Shaft-Heat-Treatment-Equipment

Product Description

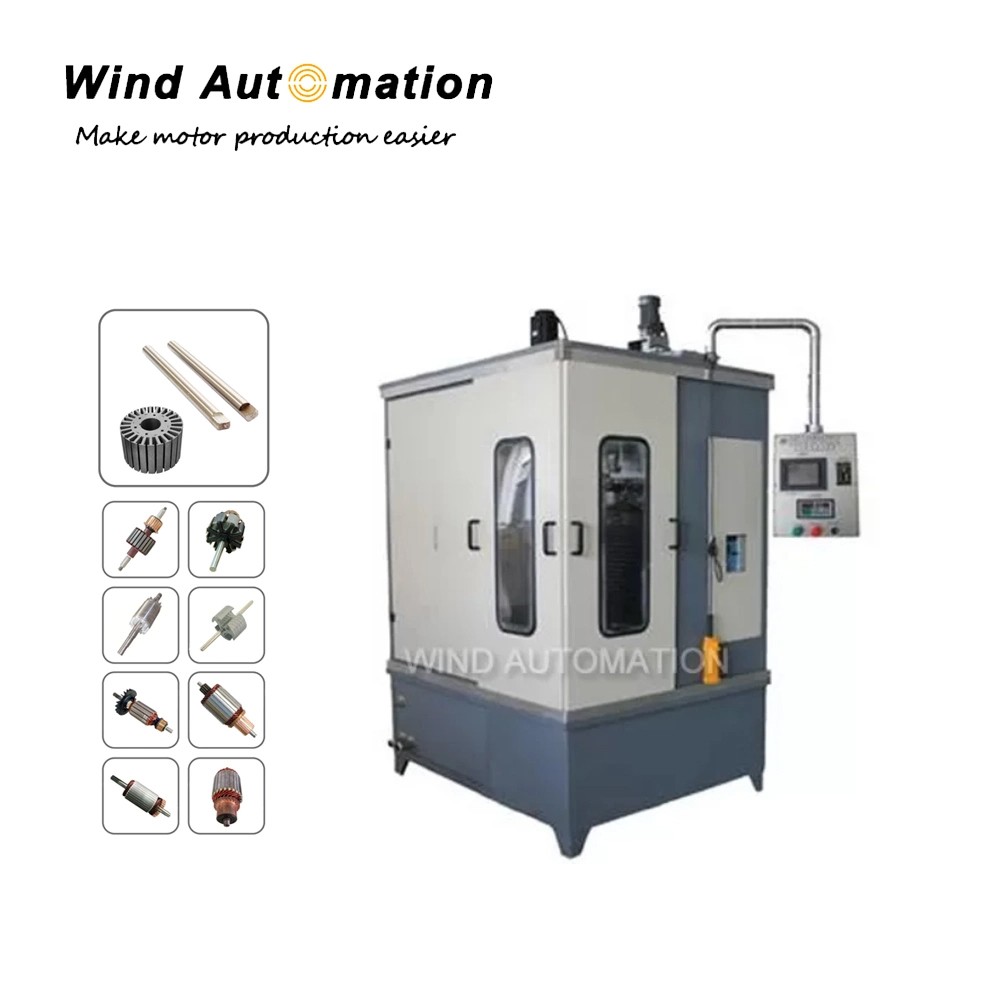

Motor Armature Shaft Quench Machine Shaft Heat Treatment Equipment

(1)Application
Suitable for induction harden various shafts surfaces, and inner holes surfaces

(2)Features
Horizontal machine
Automatic / manual operation
Single shot hardening
Perfect hardened-layer depth

(3)Competitive Advantages
Easy operation
Uniform hardened-layer depth
Boosting productivity
Convenient maintenance

(4)Specifications
Part handling plain shaft; below (φ10-φ30)×220mm
Part displacement speed 1-30mm/s CVT (Continuously Variable Transmission)
Part rotation speed 30-200rpm CVT (Continuously Variable Transmission)
Heat stations
Part displacement positioning accuracy ±0.1mm
Dimension 2800 X 1800 X 2000mm
Total weight Approx. 2tons
Power supply 3-380V 50Hz
Total power 8kW ( power supply NOT INCLUDED)
