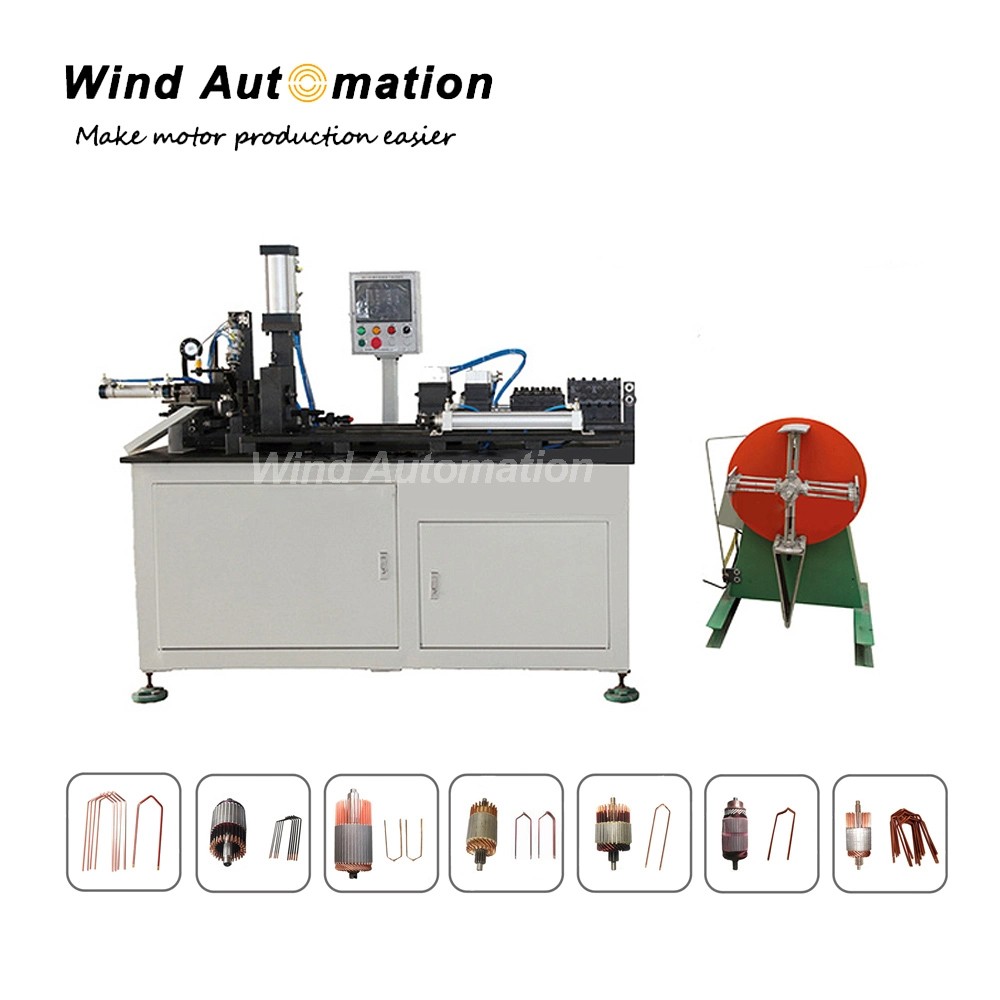

Hairpin Winding Starter Bar Winding Machine

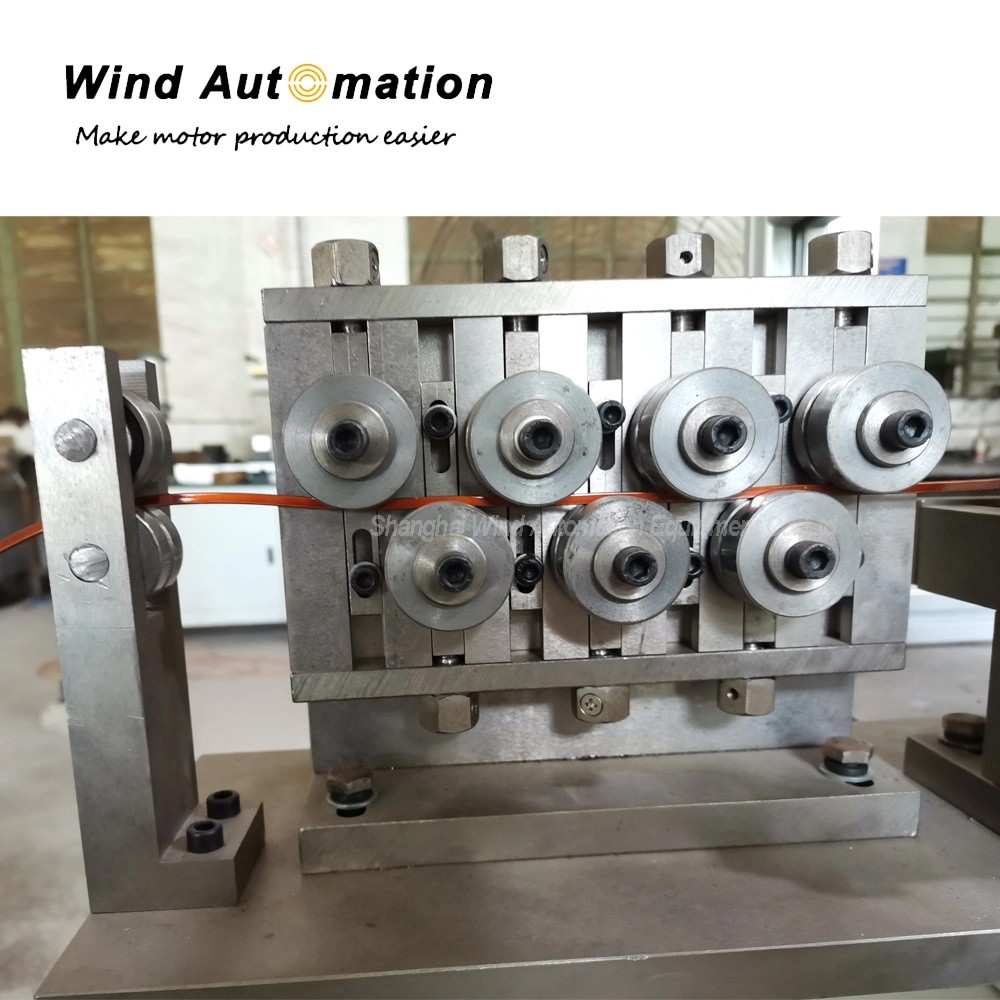

This hairpin winding machine is suitable for starter armatures with a long stack length. It can do automatica wire feeding, wire straightening, wire cutting, wire forming.
(1) Specification
| Power Supply | AC220V±10% 50Hz |
| Air Pressure Supply | ≥0.5Mpa |
| Rated Capacity | 800W |
| Feeding Length | 0~350mm |
| Productivity | 3s/pc |
| Weight | 1000KG |
| Dimension | 2000x700x1600 |
(2) Application

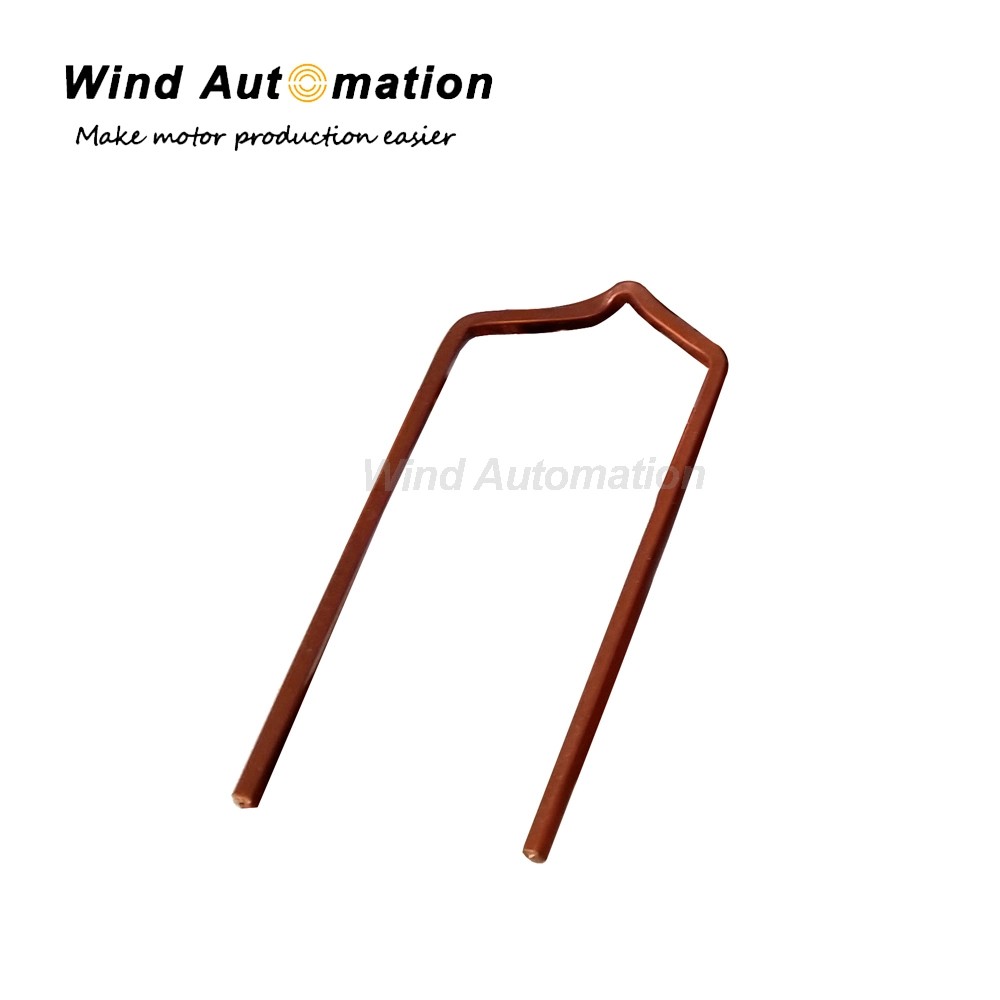

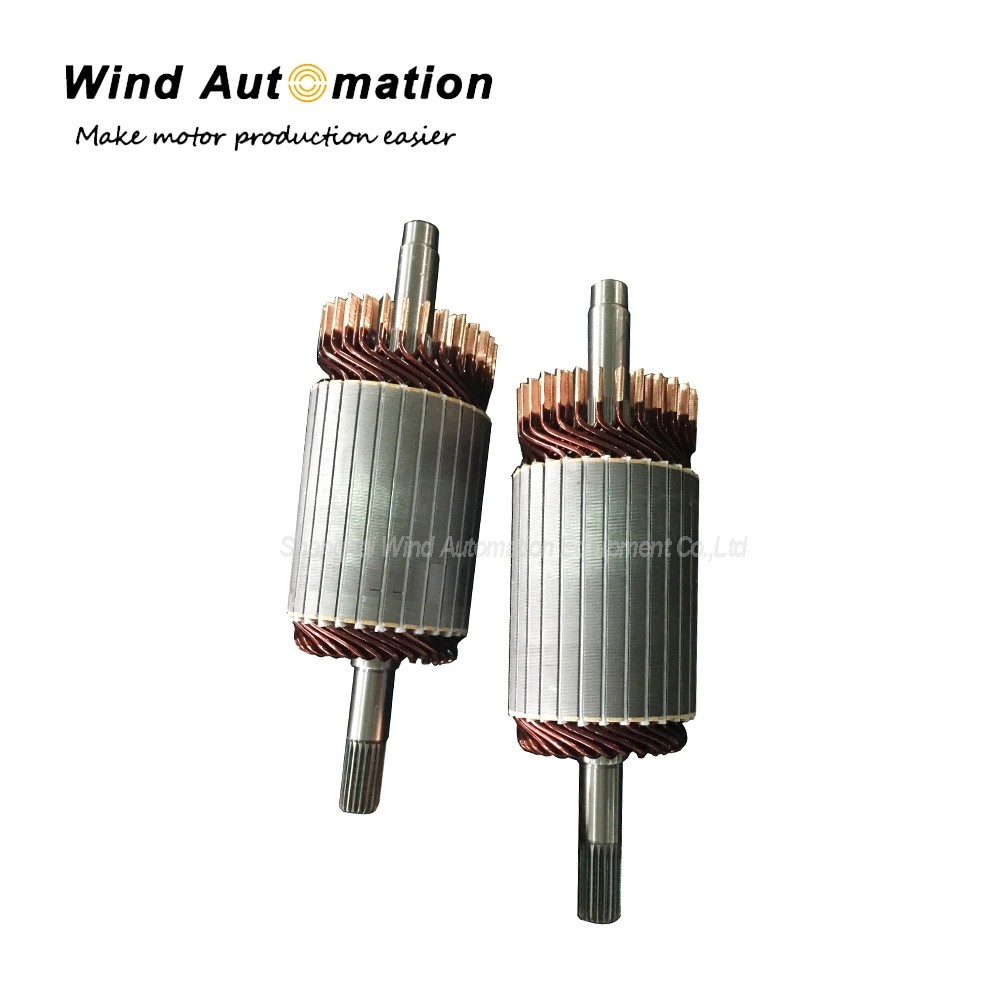

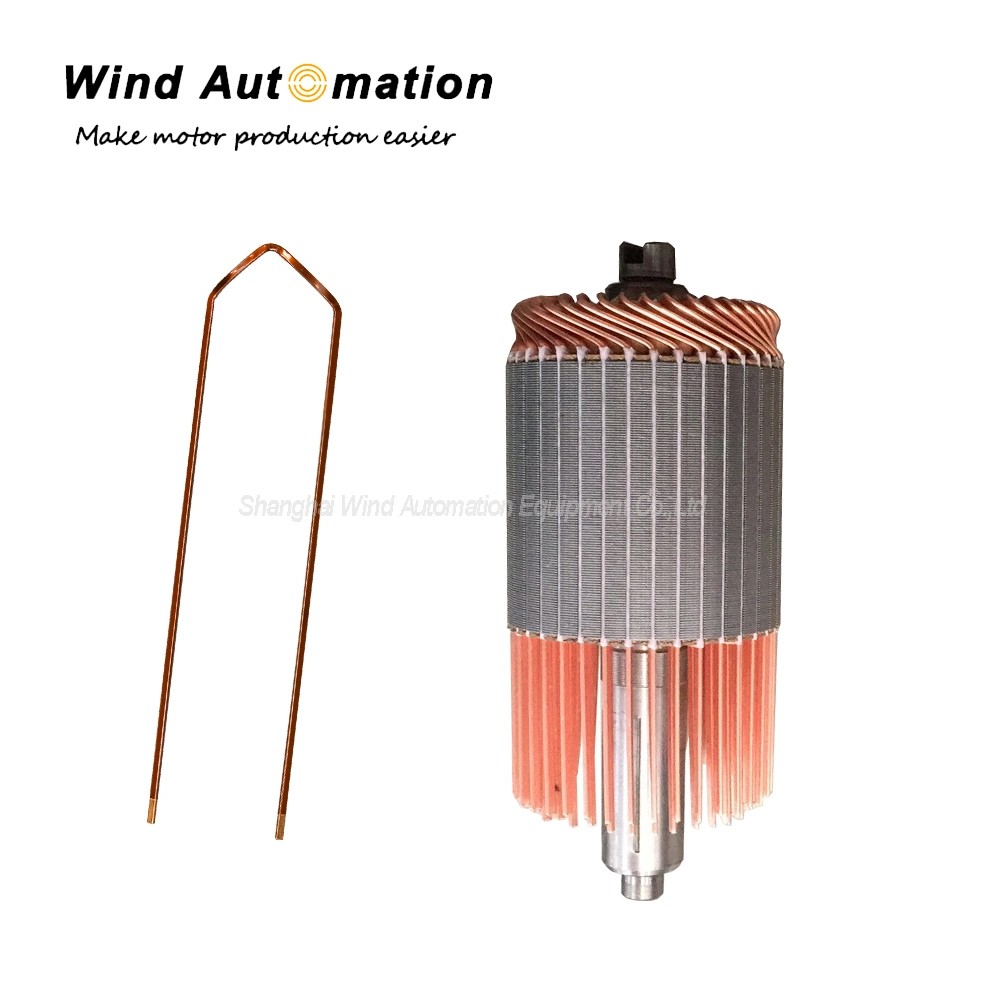

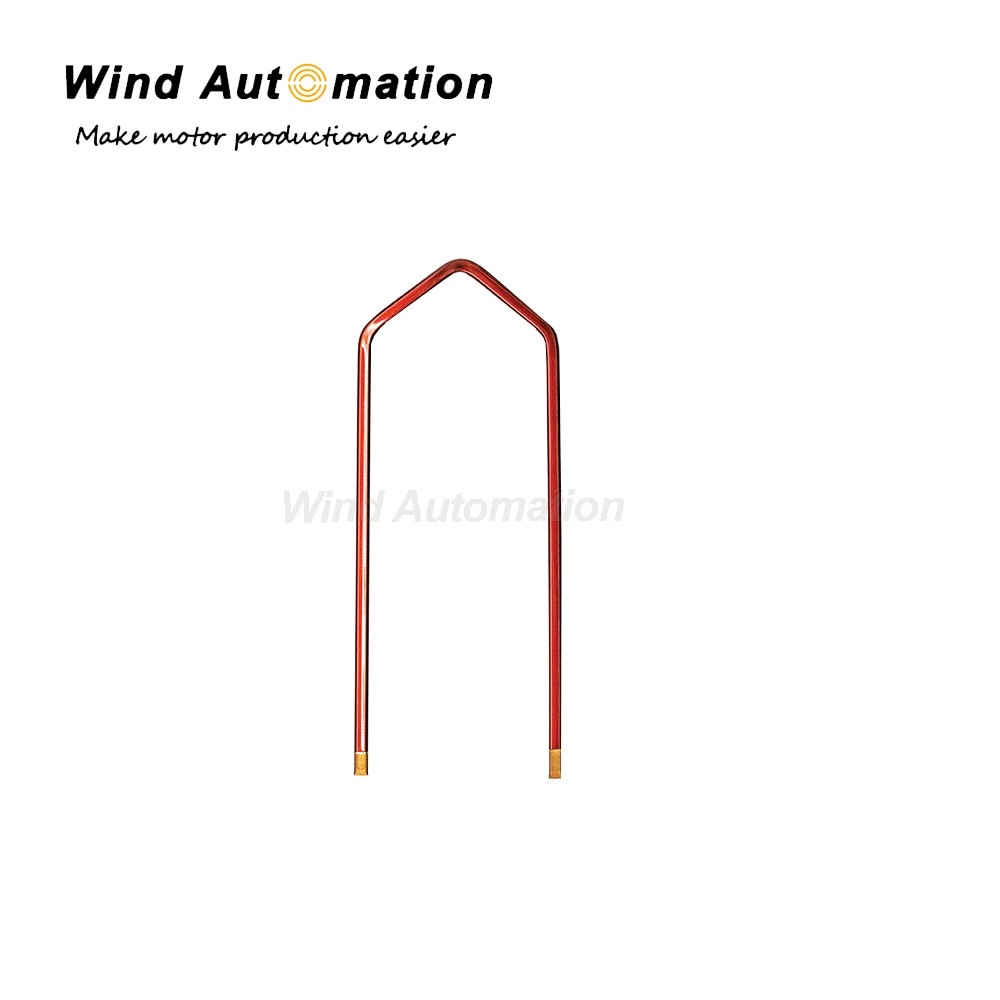

Suitable for starter motor, aerospace motor armature to do hairpin coil forming.
(3) Features
Suitable for flat wire
Mitsubishi PLC control, colorful touching screen
Capable of producing conductor with customized twisting angle
One operator is quite enough to operate this machine
