Low-Duty-Car-Motor-Stator-Slot-Paper-Forming-Machine

Product Description

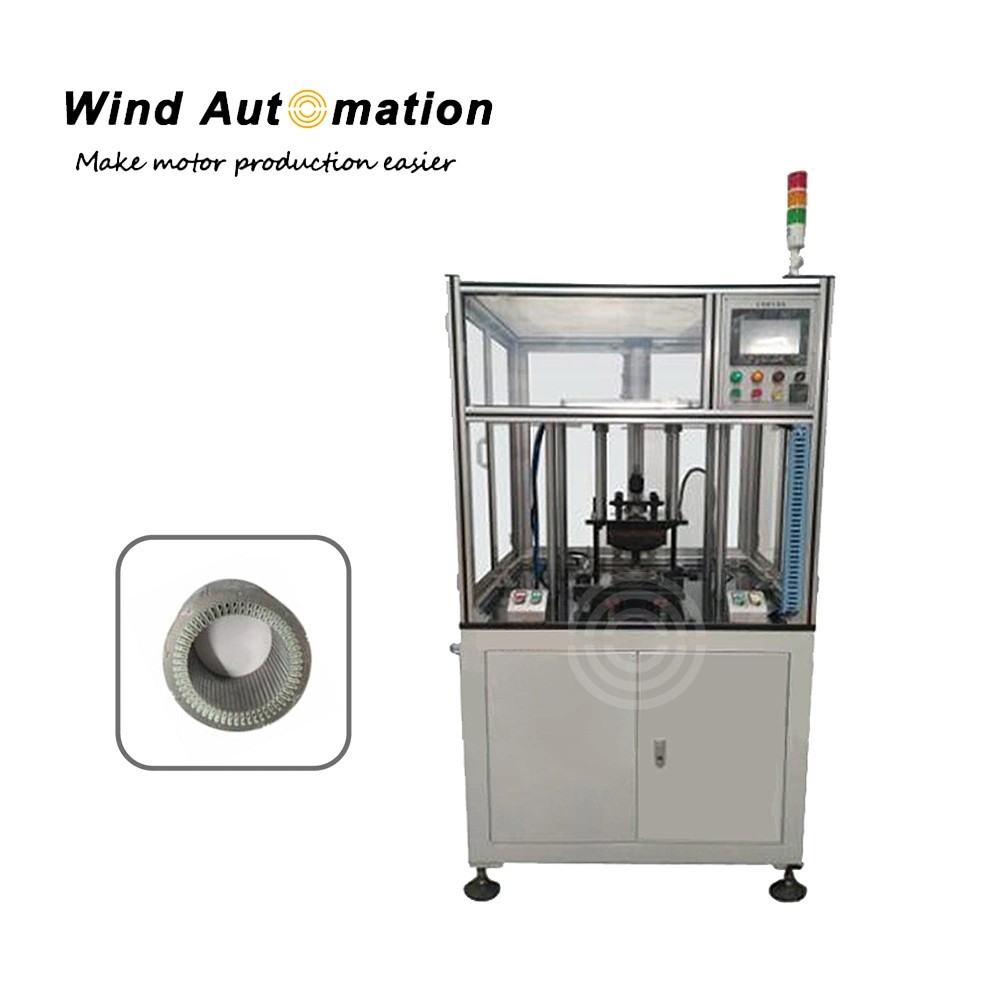

Low Duty Car Motor Stator Slot Paper Forming Machine

The slot paper forming machine is used to expanding stator slot paper after the paper inserting stage in order to leave enough space for successive coil insertion. After expanding, no deformation of stator or slot paper. The machine performs automatic expanding process after work piece loading.


(1)Application

This machine is designed for insulation paper expanding for low duty car motor, hybrid car motor, automobile car motor or new energy vehicle motor stators.

(2) Specifications

(3)  Features
PLC control, fault display
High quality level of the expanding process
No deformation of stator or slot paper after expanding
Easy to operate
Fully automatic working cycle after loading
Fast and easy readjustment
Design compliant with the requirements of the OEM manufacturers

(4)Machine configuration
Mitsubishi PLC and servo motor
Weinview touch screen
AIRTAC or SMC pneumatic components
HIWIN linear guide
Schneider electrical components
