Product Description

Armature Slot Isolation Starter Motor Slot Paper Insertion Machine

Armature Slot Isolation Starter Motor Slot Paper Insertion Machine
This slot paper insertion machine has a high quality level of paper inserting process. Loading and unloading should be done manually, while other process will be done by machine automatically.

(1)Application

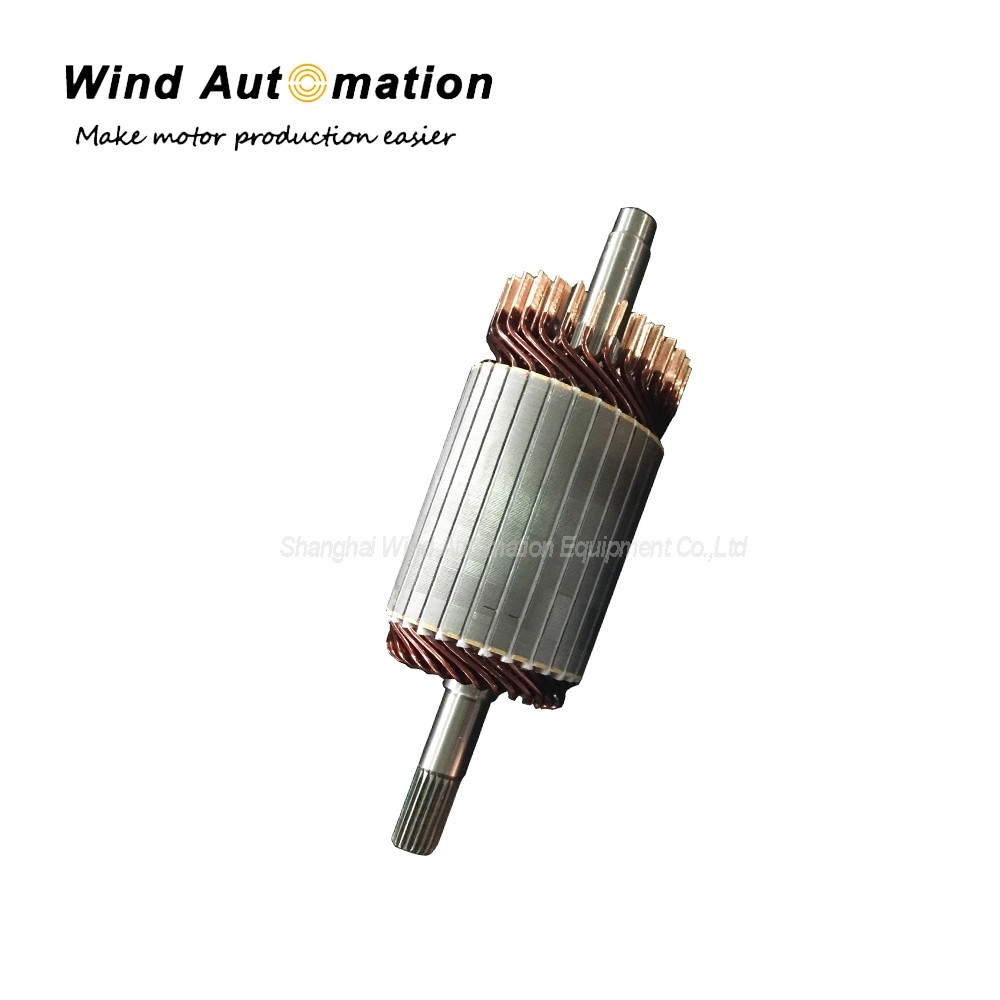

This insulation paper inserting machine is suitable for starter armature, automotive and aircraft motor armature to do slot paper insertion.

(2 Features
Manual loading and unloading
High quality level of the paper inserting process
Capable of producing both O-shape or S-shape slot insulation
High productivity, 1s/slot
Edge folding length and insulation paper length adjustable
After paper inserted, no deformation of armature or lamination.
Easy for operation, No skilled operator required
Quick and easy readjustment for other types of armatures
Parameter of different models can be edited, modified and displayed.


(3) Specifications

Stack lengthMax 100mm
Paper thickness0.18~0.2mm
Heating temperature70~100ºC
Air sourceMin 0.5 MPa
Input Power Source220V AC



Armature Slot Isolation Starter Motor Slot Paper Insertion Machine
Armature Slot Isolation Starter Motor Slot Paper Insertion Machine
Armature Slot Isolation Starter Motor Slot Paper Insertion Machine
