Starter-Bar-Winding-Machine-Armature-Hairpin-Shaping-Machine

Product Description

Starter Bar Winding Machine Armature Hairpin Shaping Machine

This hairpin shaping machine is used to shape copper wire into coil which can be ready to insert into armature body. During forming, one operator is quite enough to operate this machine.

(1) Features
Suitable for round wire
Mitsubishi PLC control, colorful touch screen
Automatically turn single bare copper wire into formed hairpin coil
High efficiency, automation and productivity, 2.3s/pc
Capable of producing hairpins with customized twisting angle
One operator is quite enough to operate this machine

(2)Specifications

(3) Application

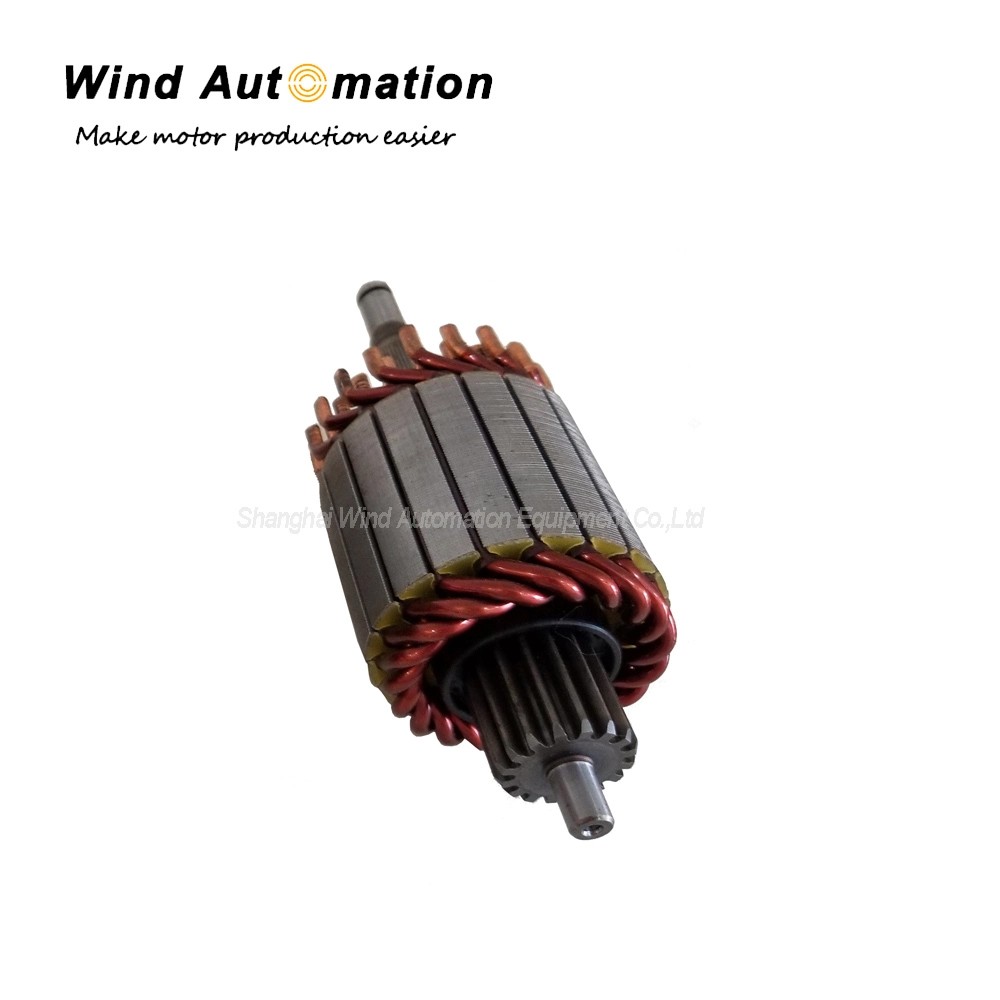

Suitable for starter motor, aerospace motor armature to do hairpin coil forming.

(4)Machine configuration
Mitsubishi PLC Control
WEINVIEW touch screen
Airtac pneumatic unit
SPG enamel remover
Schneider electric components
