Product Description

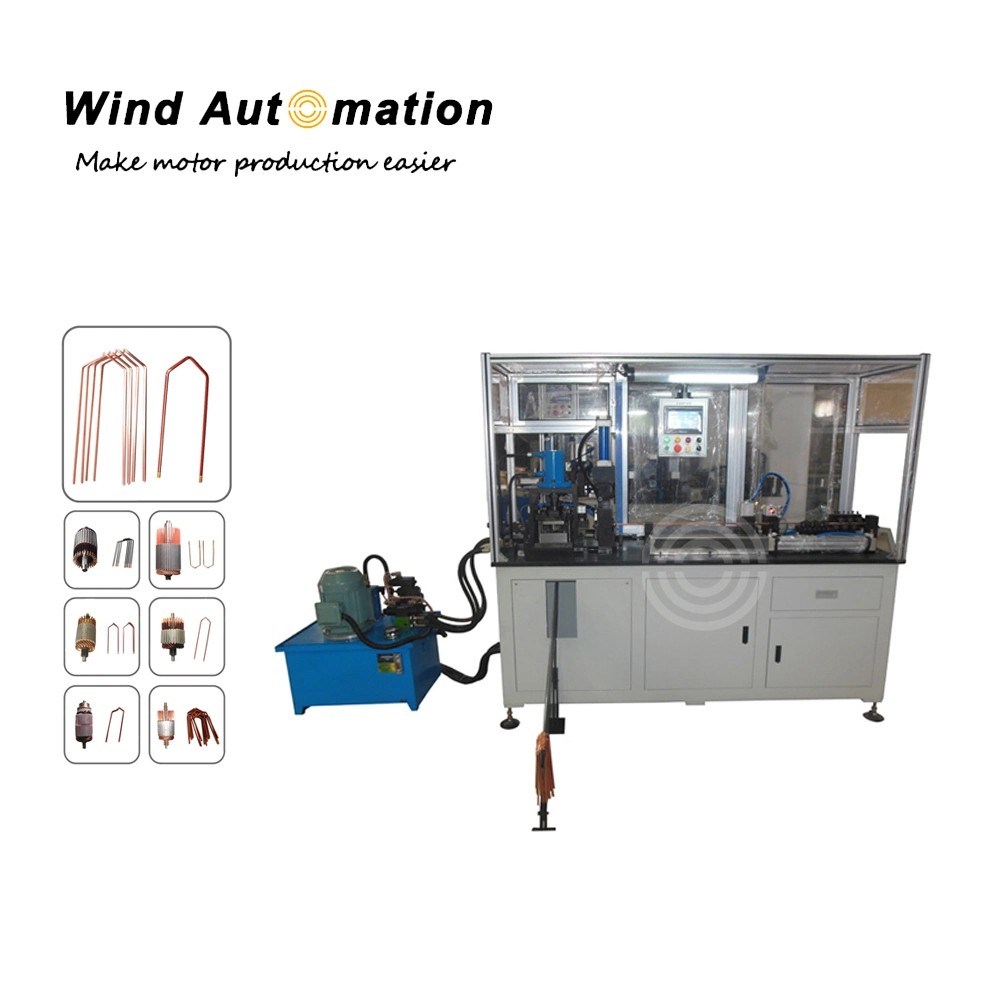

Aerospace coil Forming Machine Hair Pin Winding Machine

Aerospace Coil Forming Machine Hair Pin Winding Machine

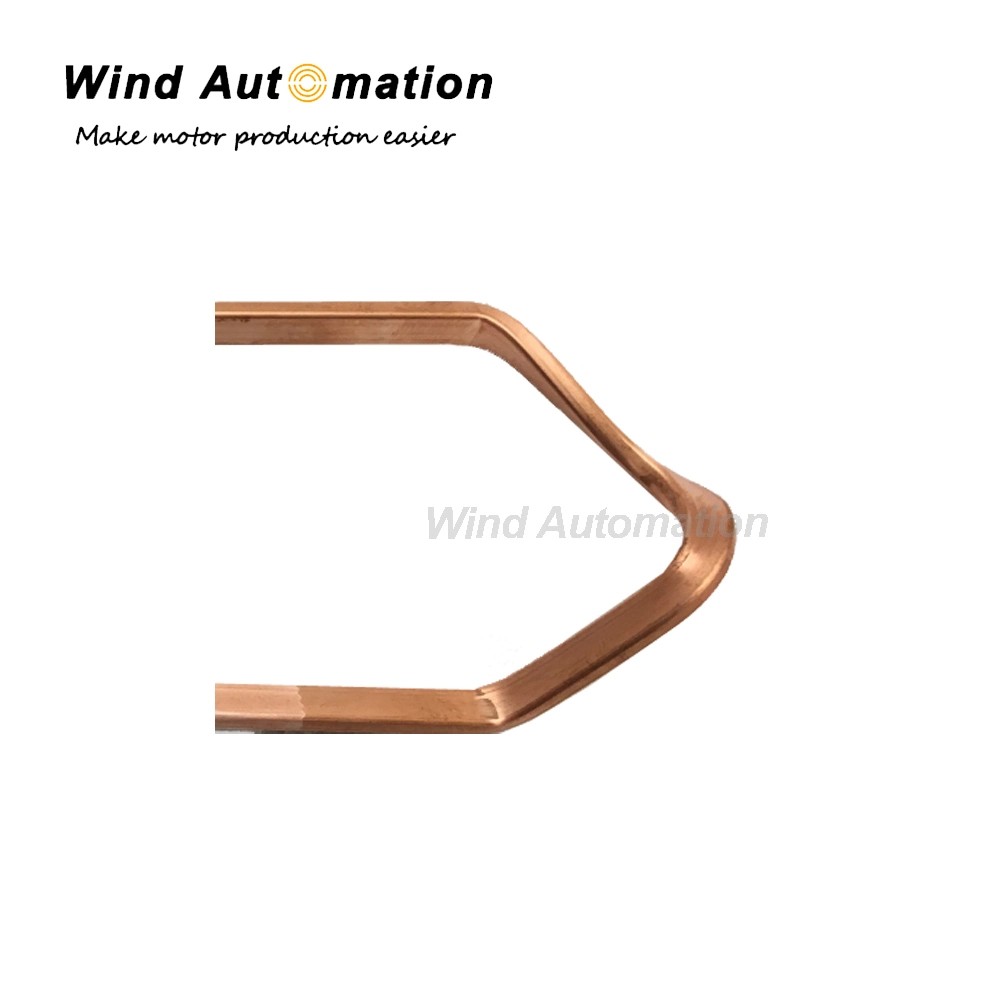

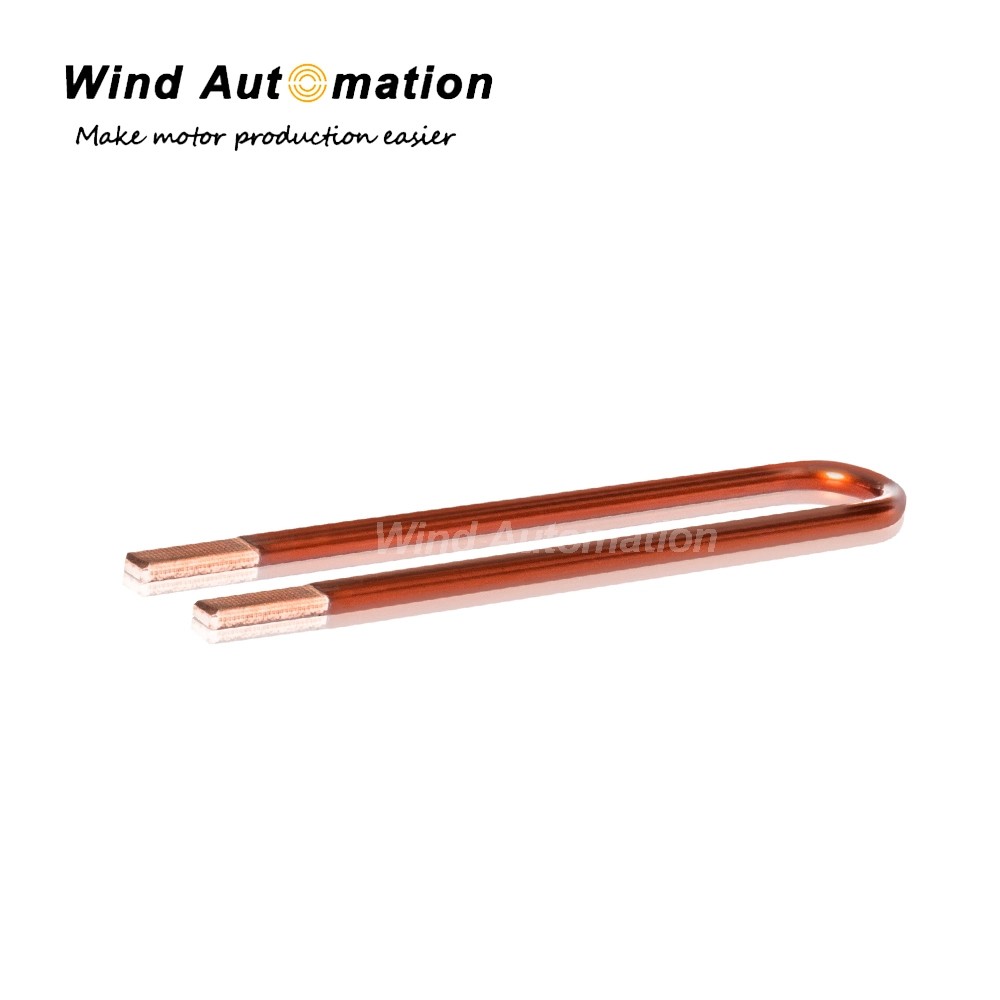

This hair pin winding machine is a special equipment for forming flat copper wire into haripin shape. Unlike other machines, this one adopts hydraulic system to do the coil forming.

(1)Specifications

Power Supply	AC 380V
Machine Power	about 2.2 kW
Productivity	4 pc/s
Feeding length	Max 450mm
Weight	800KG
Dimension	2000x700x1800mm

(2) Application

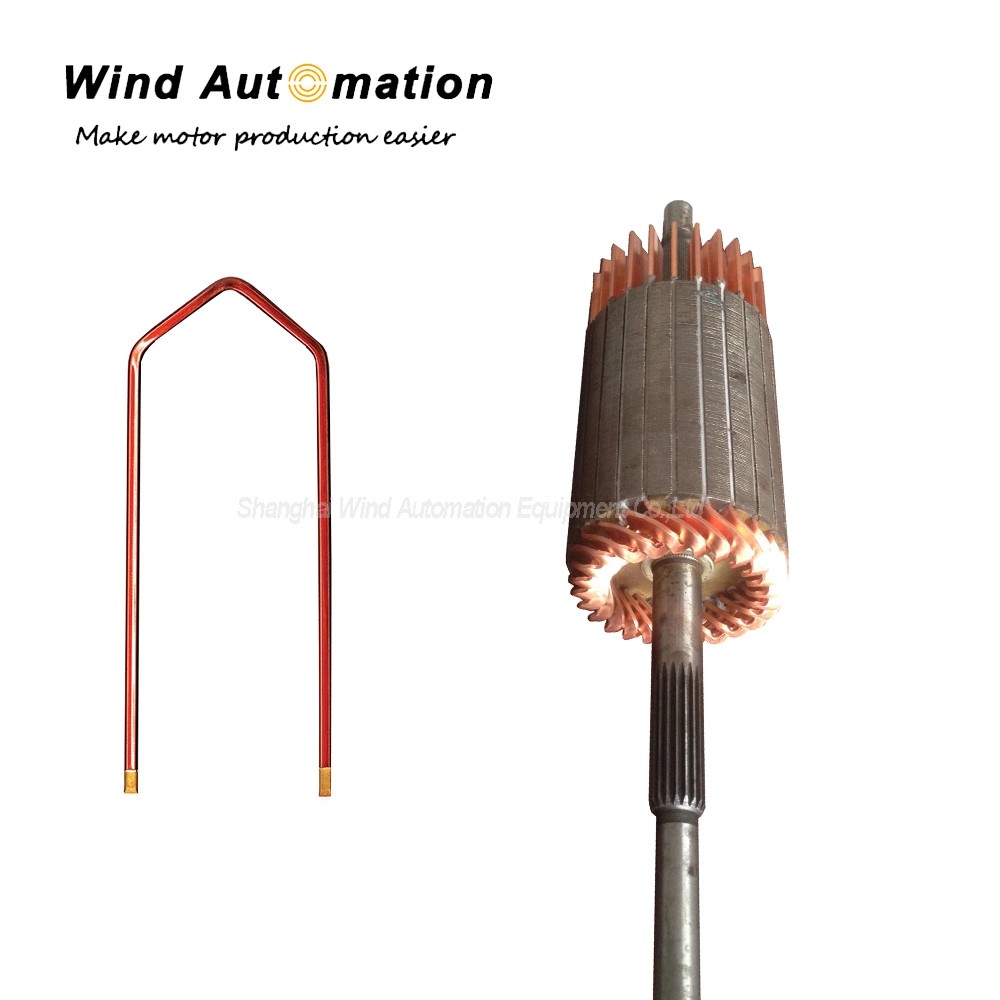

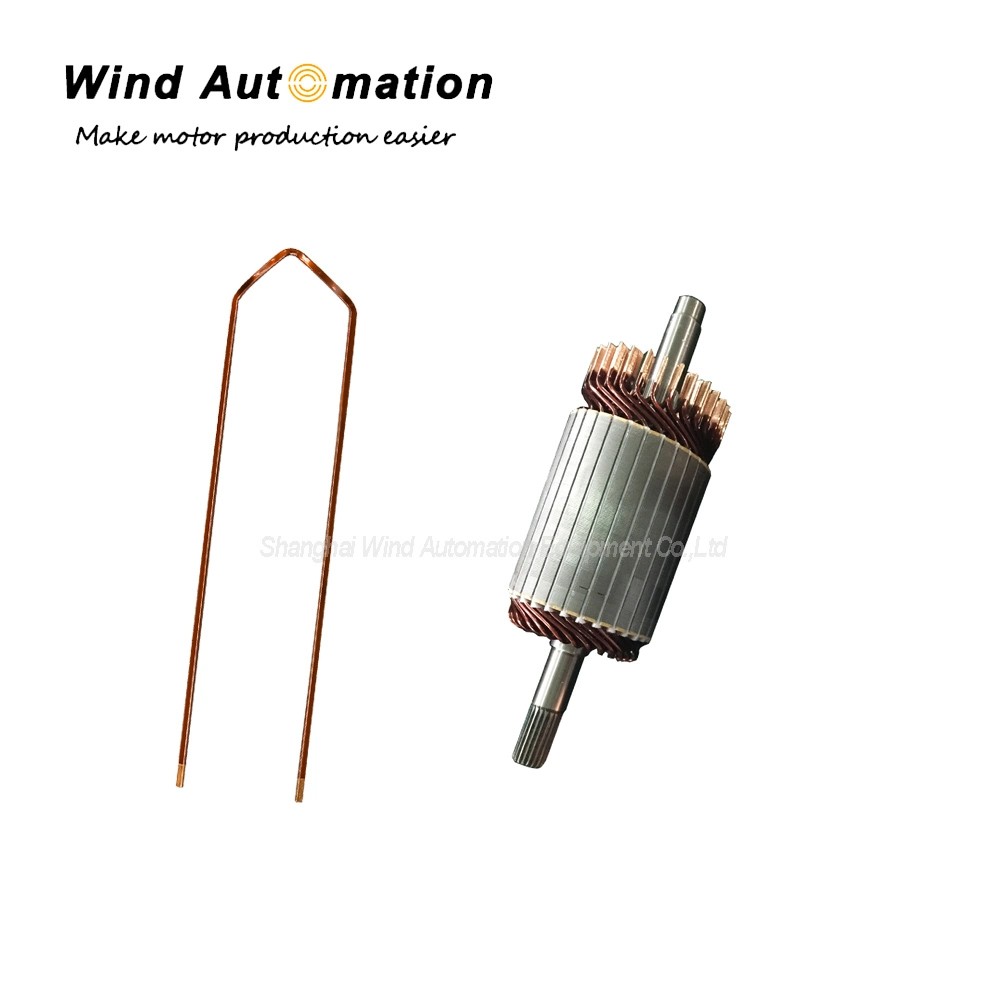

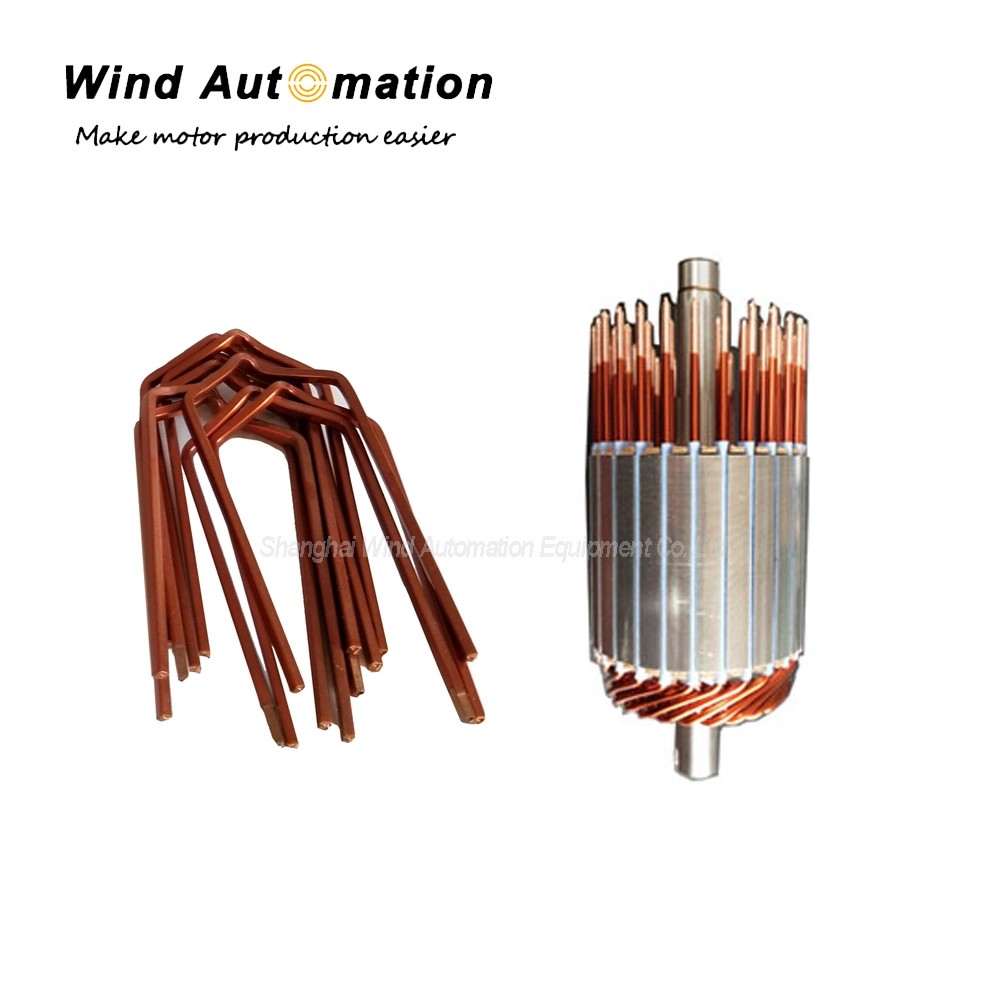

Suitable for starter motor, aerospace motor armature to do haripin coil forming.

(3)Machine configuration
Mitsubishi PLC Control
WEINVIEW touch screen
Hydraulic system
HIWIN Linear guides
Schneider electric components
