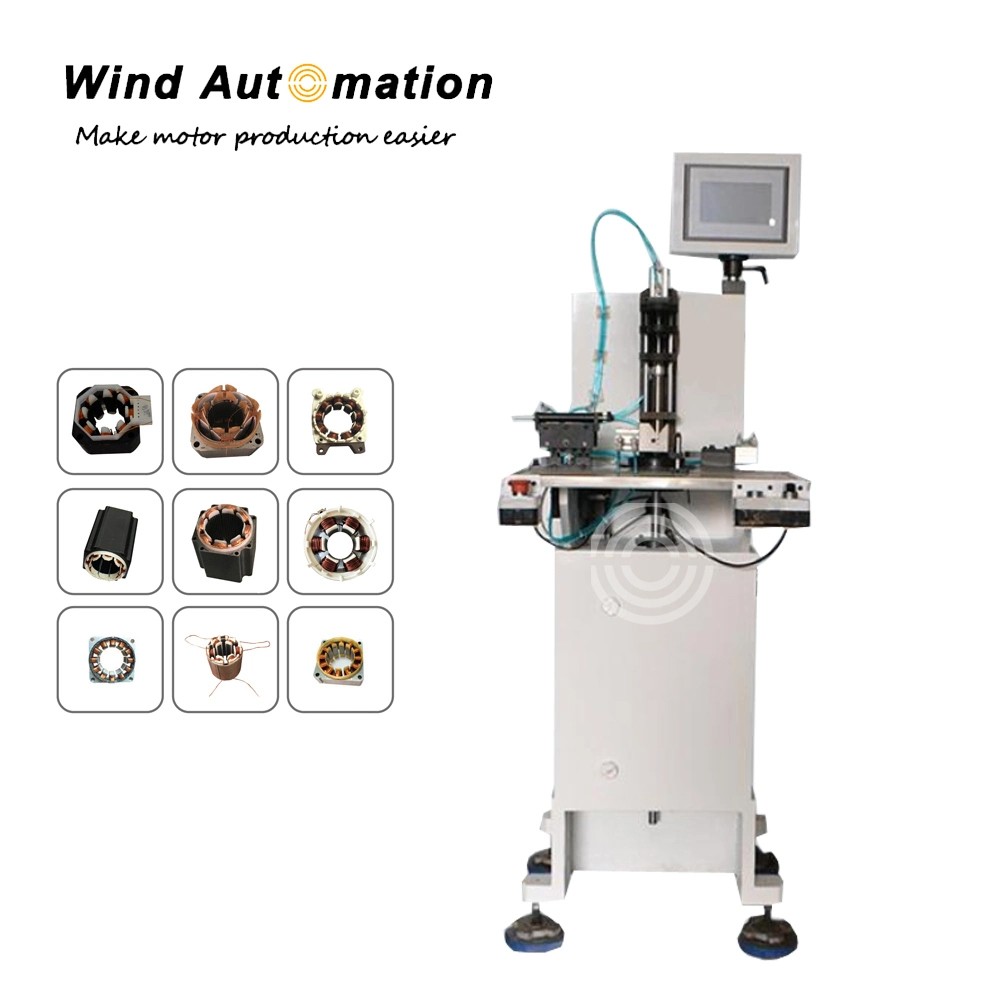

Needle Coil Winding Machine for Stepping Motor with 18 Slots Stator
Besides 18 slots stator, this BLDC motor winding machine can also winding 6 slots, 8 slots, 12 slots, 14 slots and other slots number stators. It covers a wide wire range from 0.08mm to 1.2mm.
(1)Features
High quality level of the winding process
Wide application and model types
Quick change-over of tooling
Provide customized service
Automatic winding, indexing, layering and terminating
(2)Specification
| Wire diameter | 0.08~1.20mm |
| Stator ID | 15~65mm |
| Stack length | 7~115mm |
| Turn No. | 0~9999 |
| Movement | Stepping/Auto |
| Slot number | 6,8,9,10,12,14,18(customized) |
| Air source | 5~7kg/cm3 |
| Power | 1KW |
| Power supply | AC 220 V, 50/60HZ |
| Weight | 350KG |
| Dimension | 1550x900x1450mm |
(3)Application

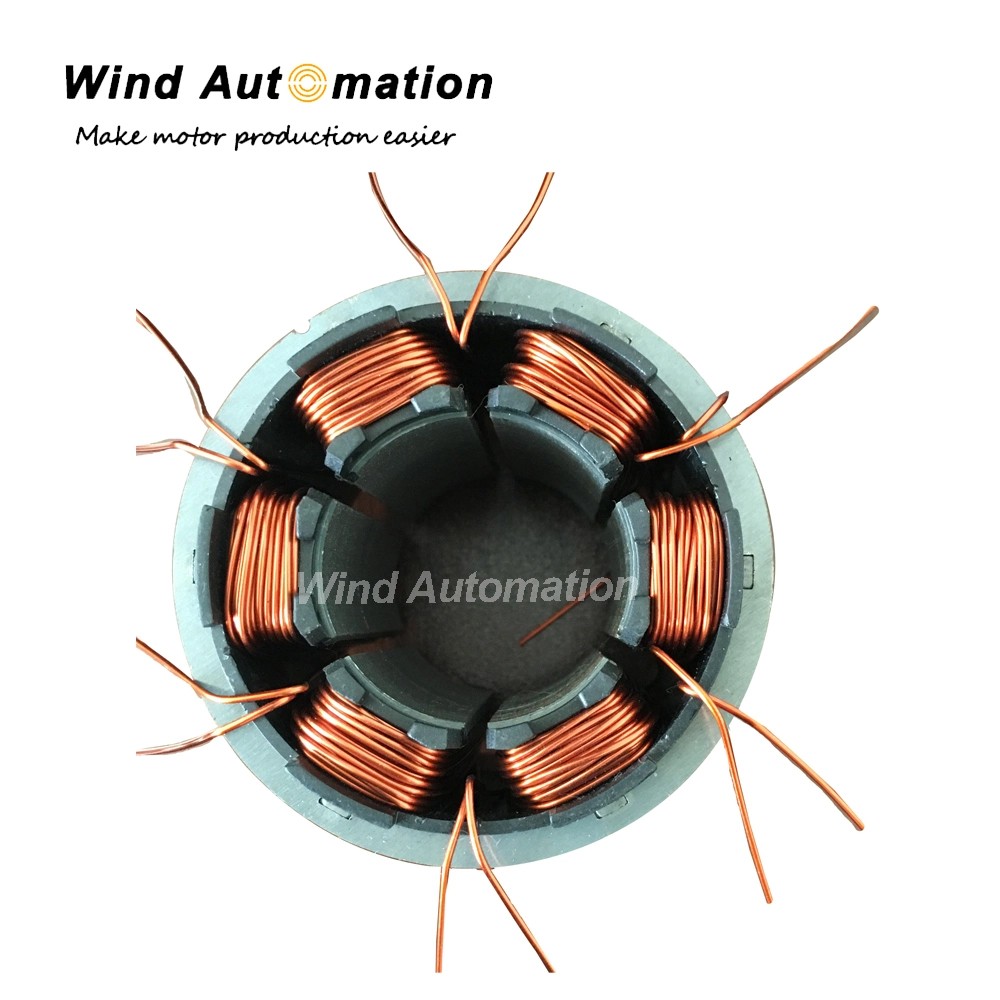

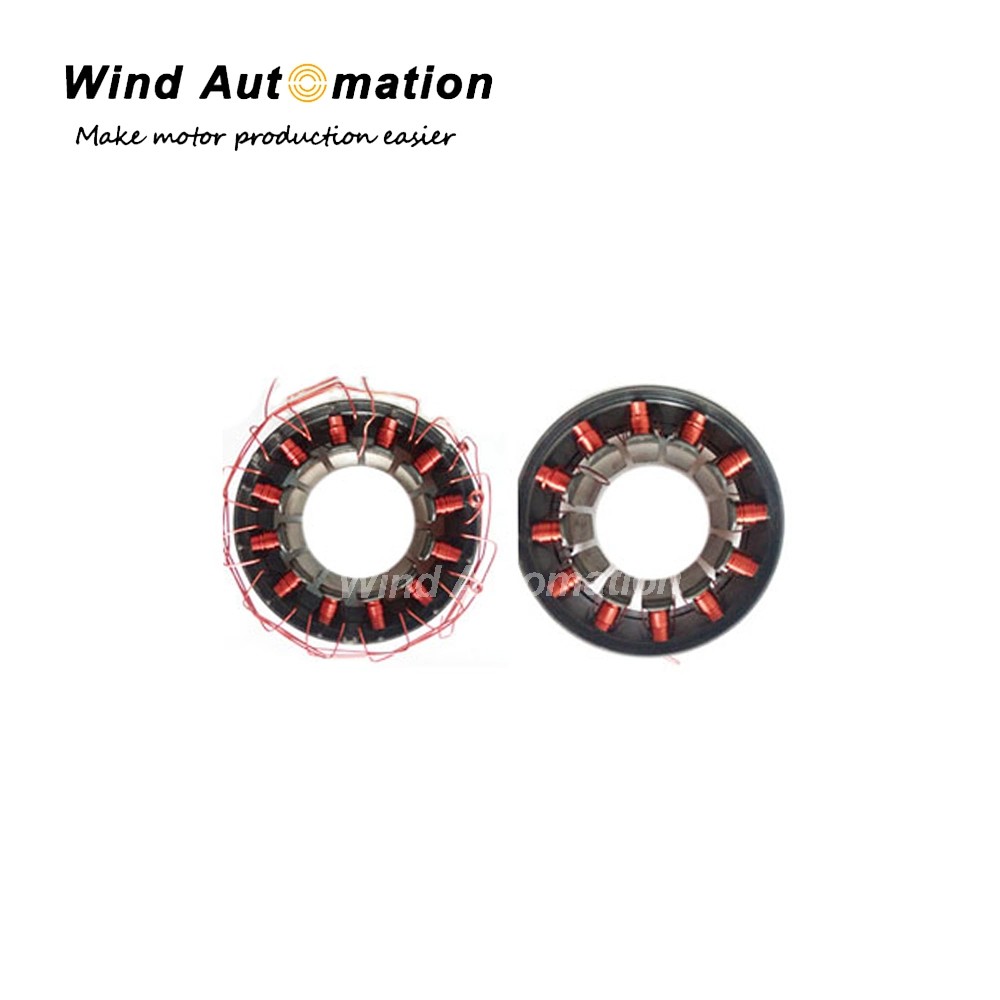

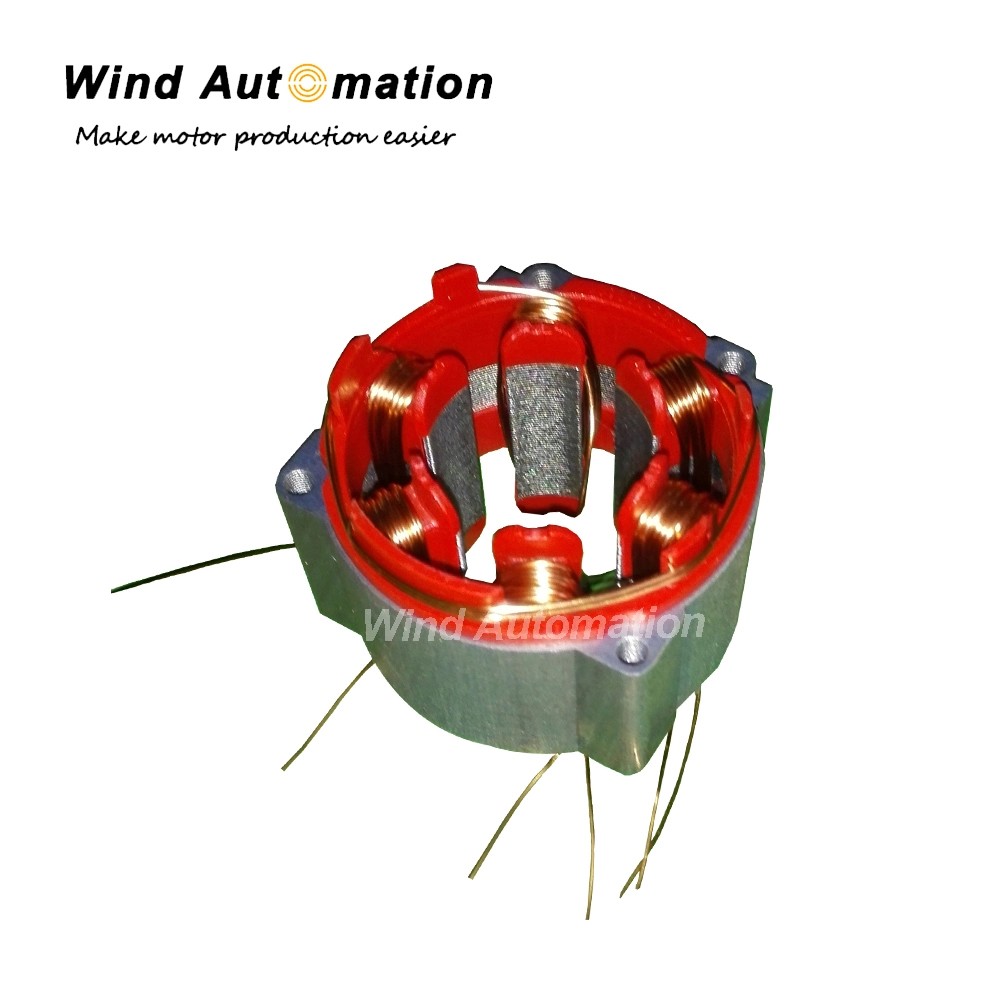

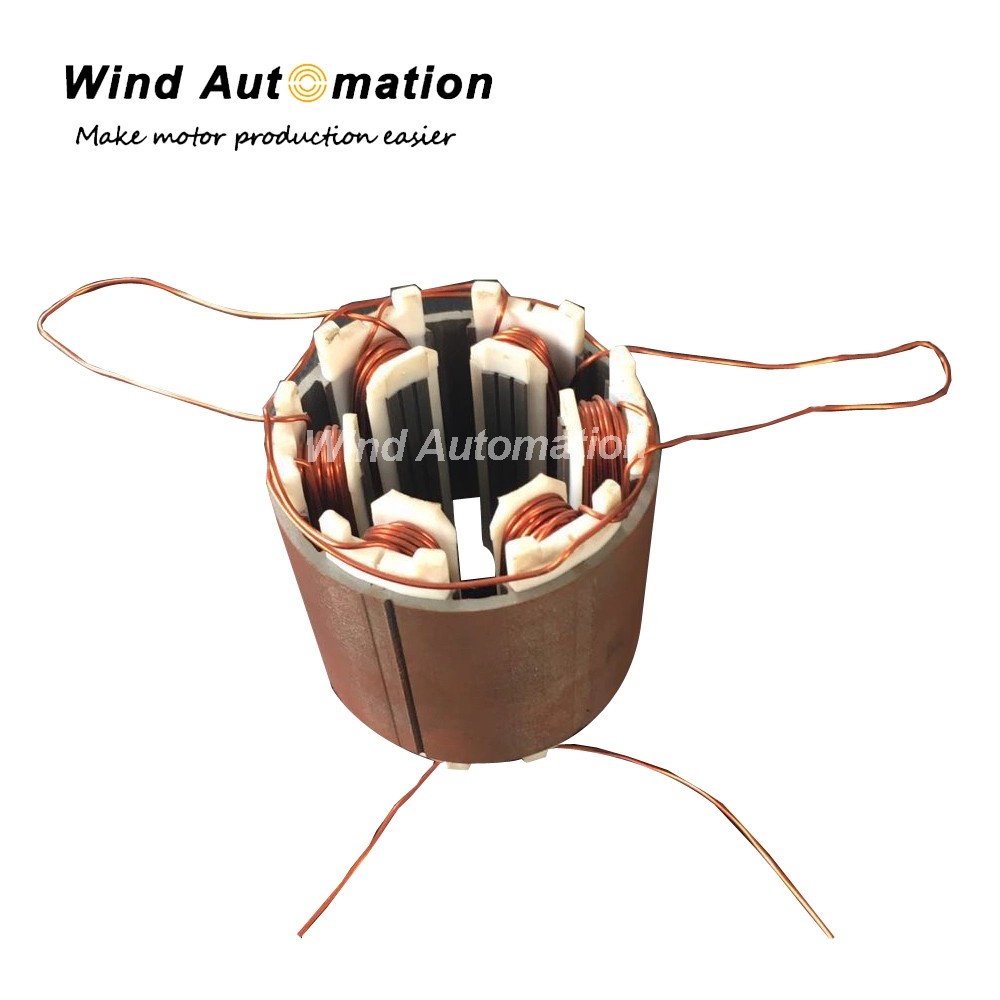

Suitable for various types of multi-poles stators, stepping motor, BLDC motor regardless of wire diameter.
(4)Machine configuration
Mitsubishi PLC
Touch screen
AIRTAC cylinder
High-power stepping motor
Lubrication system
