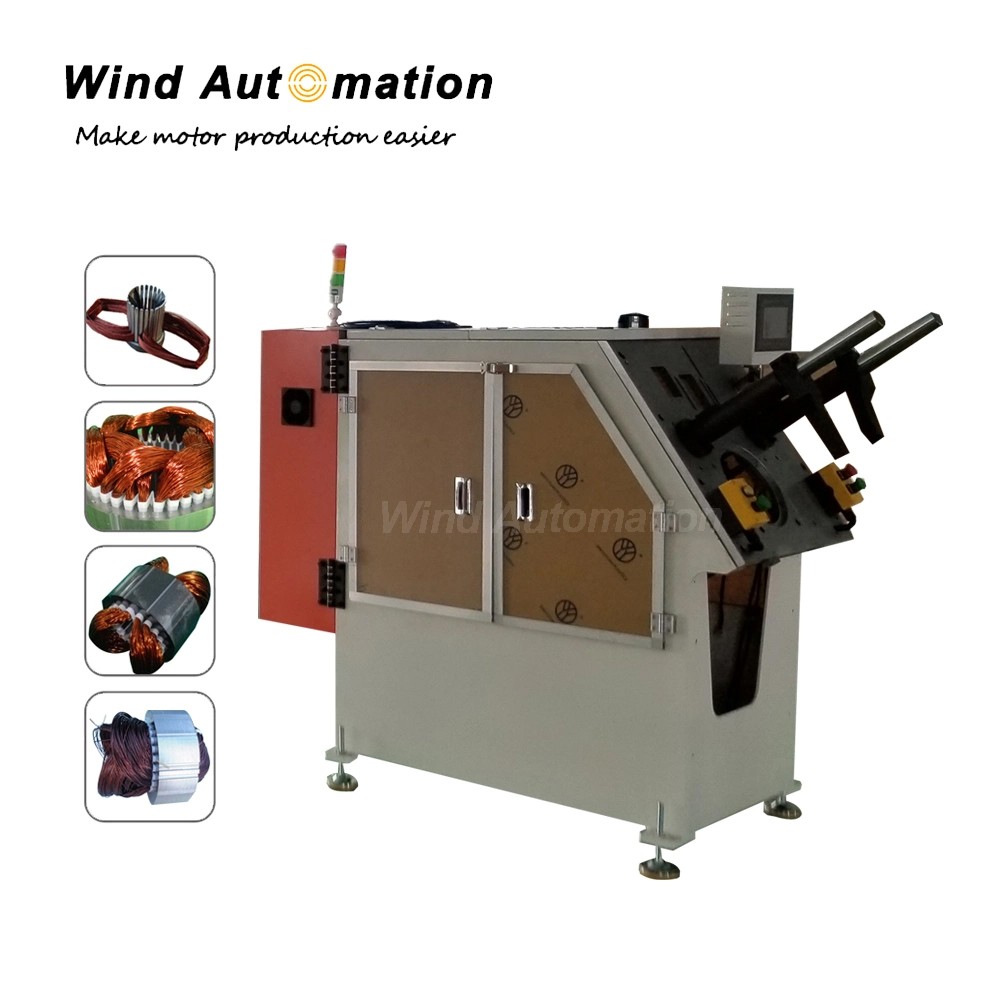

Induction Motor Stator Coil and Wedge Inserting Machine
This inserting machine is suitable for different model type stators to do coil insertion through tooling change. Machine is easy to operate, no killed operator required.
(1) Specification
| Stack length | Max 120mm |
| Stator ID | 20~100mm |
| Stator OD | Max 160mm |
| Tooling stroke | Max 70mm |
| Suitable wire material | Copper/Aluminium wire |
| Slot number | 8~48slots |
| Power supply | 380V 50/60HZ |
| Weight | 850KG |
| Dimension | 1850x650x1700mm |
(2) Application
This type of machine is suitable for various types of AC motor, induction motor stators.
(3) Feature
Wide application
Manual loading and unloading
Can be customized accordingly
Parameter of different models can be edited, modified and displayed
Quick and easy readjustment for other types of stator
Copper wire and aluminium wire are both applicable
After insertion, no deformation of stator, lamination, or insulation paper
Easy for operation, No skilled operator required
