Stator Coil Lacing Machine Slot by Slot/ Interval Lacing

Stator Coil Lacing Machine Slot by Slot/ Interval Lacing

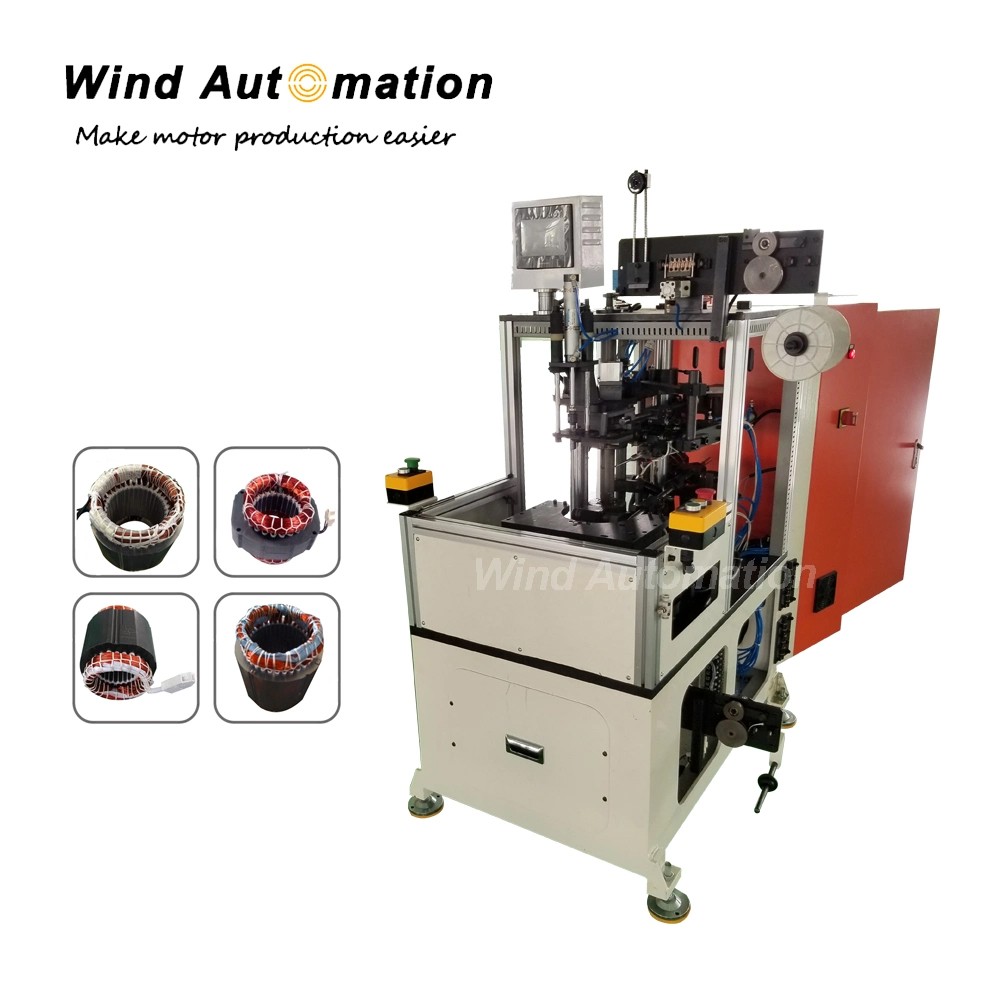

Except for maunal loading and unloading, all other process will be done by machine automatically. There are several lacing modes, slot by slot, interval ,fancy lacing.

(1) Application
This type of machine is suitable for AC motor, induction motor stators, and 3 phase motor , fan motor, compression motor ,air conditioner motor, washing machine motor,  generator motor and pump motor.

(2) Specification

Stack length15~120mm
Stator ID25~100mm
Stator ODMax 160mm
Coil heightMax 40mm
Lacing modeSlot by slot/ interval slot/ fancy lacing
Lacing speed0.45s/slot
Power4KW
Power supply380V 50/60HZ
Weight800KG
Dimension1500x650x1700mm


(3) Feature
Double side lacing
High quality level of the lacing process

Manual loading and unloading
Several lacing mode applicable
Can be customized accordingly
Parameter of different models can be edited, modified and displayed

The entire working cycle is fully automatic excluding manual loading and unloading
Integrable in a production line
No need to change tooling for different stack length, only mechanical adjustment required
Different lacing modes available, slot-by-slot lacing, slot-skipping lacing or fancy lacing
