Segment Winding Machine

1. Wire size below 2.0mm
2. Muti wire winding
3. Internal Stator

Segment Winding Machine Straight Bar Linear Segment Stator Needle Winding Machine

This type of needle winding machine is designed for stators with narrow slot , high slot filling rate.

During winding, turn number in each layer can be flexibly changed to meet different requirements of various model types.

(1) Features
Friendly designed operator's interface
2 working stations to do synchronous winding
High efficiency and production
Precise servo drive control of the wire feeding
High quality level of the winding process
No-loading speed up to 600r/min
Provide customized service

(2) Specification

Working station	2
Stator OD	Max 400mm
Stack length	Max 100mm
Stator weight	Max 3KG
Wire range	0.1-0.8mm
Winding speed	600rpm
Power	8 KW
Air source	0.4~0.7 MPa
Power supply	AC 380±10, 50/60HZ
Dimension	1100x800x2000mm
Weight	900KG

(3) Application
It is suitable for various kinds of open slot stators with high slot filling rate.

(4) For Winding Machine price
Segmented stator winding details is needed

The winding machine can handle wire size below 2.0mm,

and when the wire is below 0.8mm, muti-wires winding is better for the machine to handle

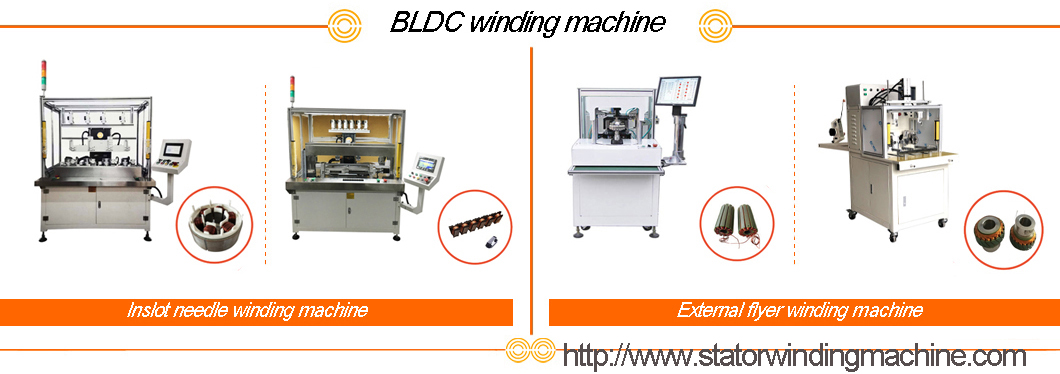

BLDC motor stator winding machine Shanghai Wind Automation.jpg
